WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION [(E)]

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION [(E)]

id0919008021x2


Windshield Washer Hose A

Note
•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION.)

4.  Remove the front over fender (RH). (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

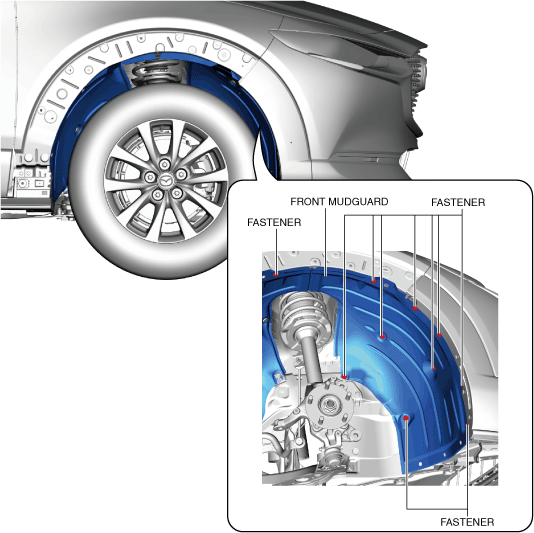

5.  Remove the fasteners.

ac30zw00002187

6.  Set the front mudguard (RH) aside.

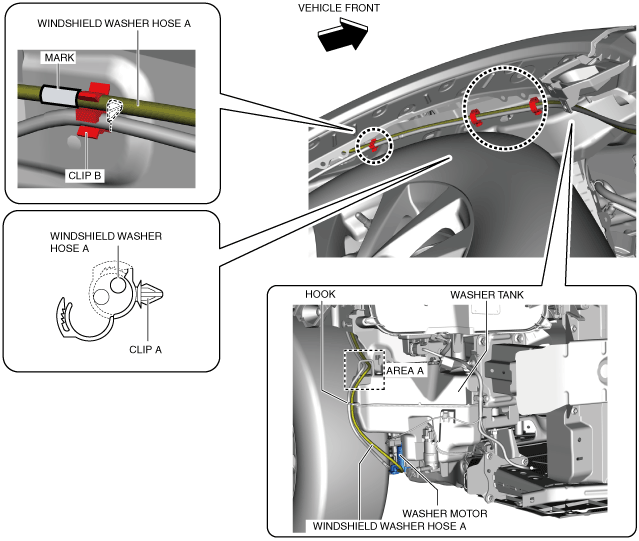

7.  Disconnect the windshield washer hose A from the washer motor.

ac30zw00002677

8.  Remove the windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

9.  Pull out the windshield washer hose A from area A of the washer tank.

10.  Remove the windshield washer hose A from the clips A and B.

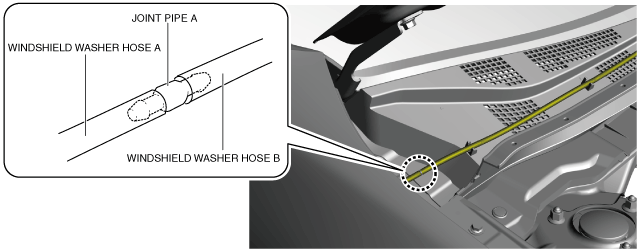

11.  Disconnect the windshield washer hose A from the joint pipe A.

L.H.D.

ac30zw00002678

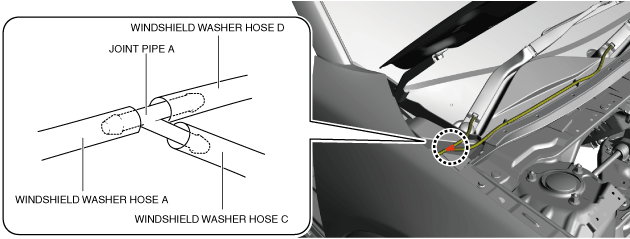

R.H.D.

ac30zw00002681

12.  Remove the windshield washer hose A.

13.  Install in the reverse order of removal.


Windshield washer hose A installation note

•  When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the gray mark and install.
am3zzw00027132


Windshield Washer Hose B (L.H.D.)

1.  Disconnect the windshield washer hose B from the joint pipe A.

ac30zw00002678

2.  Disconnect the windshield washer hose B from the joint pipe B.

ac30zw00002591

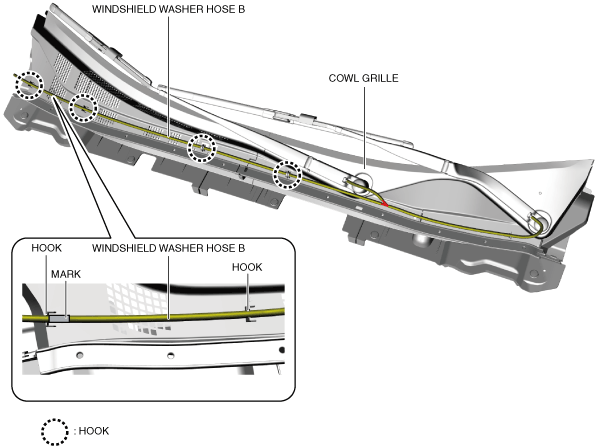

3.  Remove the windshield washer hose B from the hooks.

ac30zw00002592

4.  Install in the reverse order of removal.


Windshield Washer Hose C and D


L.H.D.

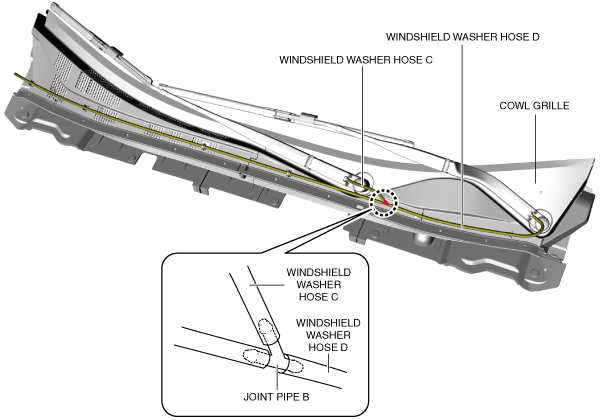

1.  Disconnect the windshield washer hose C and D from the joint pipe B.

ac30zw00002618

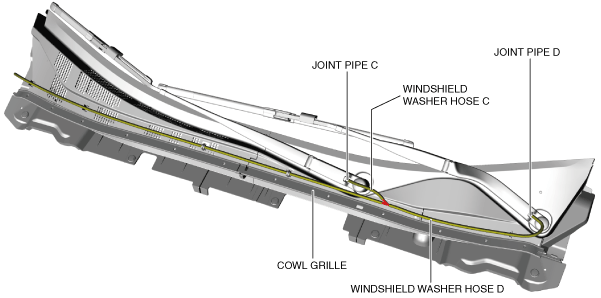

2.  Disconnect the windshield washer hose C and D from the joint pipe C and D.

ac30zw00002595

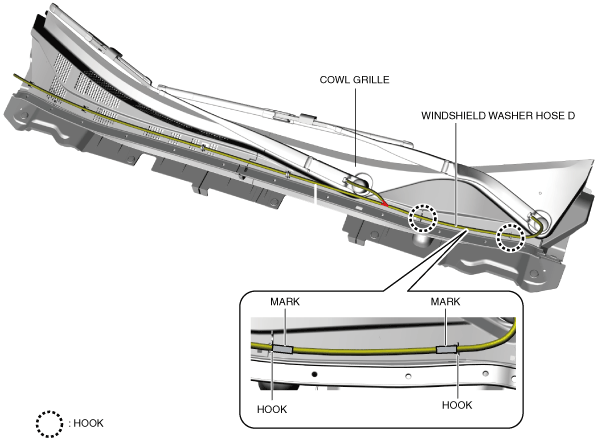

3.  Remove the windshield washer hose D from the hooks.

ac30zw00002597

4.  Install in the reverse order of removal.


R.H.D.

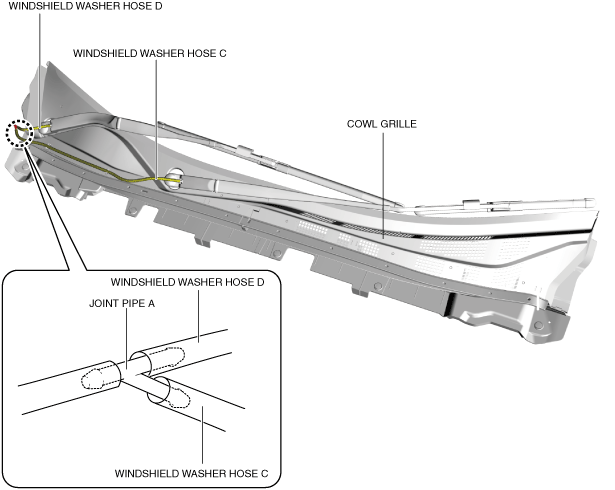

1.  Disconnect the windshield washer hose C and D from the joint pipe A.

ac30zw00002594

2.  Disconnect the windshield washer hose C and D from the joint pipe C and D.

ac30zw00002596

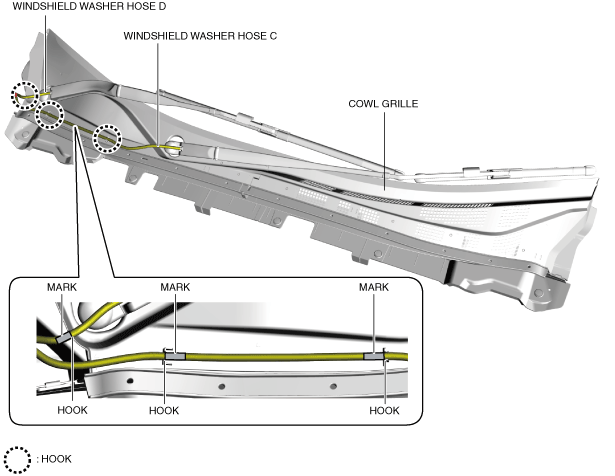

3.  Remove the windshield washer hose C and D from the hooks.

ac30zw00002598

4.  Install in the reverse order of removal.
