AUDIO AMPLIFIER REMOVAL/INSTALLATION [(E)]

id0920008011x2

1.  Remove the head restraint.

2.  Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

3.  Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

4.  Perform the following procedure. (without Mazda M Hybrid)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Perform the following procedure. (with Mazda M Hybrid, without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

6.  Perform the following procedure. (with Mazda M Hybrid, with seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

7.  Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

8.  Remove the fastener.

ac30zw00000368

9.  Remove the audio amplifier cover.

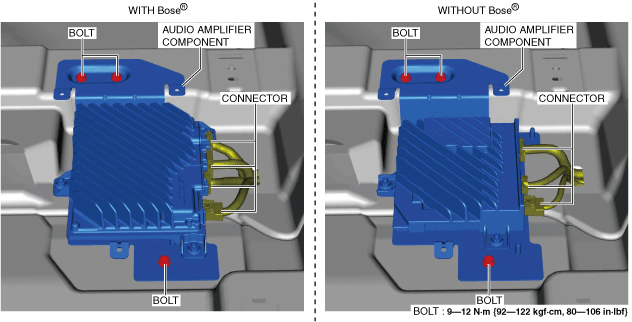

10.  Remove the bolts.

am3zzw00025001

11.  Disconnect the connectors.

12.  Remove the audio amplifier component.

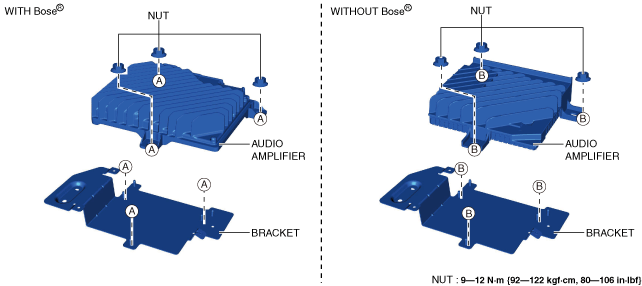

13.  When removing the bracket, perform the following procedure:

(1)  Remove the nuts.

ac30zw00002932

(2)  Remove the bracket.

14.  Install in the reverse order of removal.
