HORN REMOVAL/INSTALLATION

HORN REMOVAL/INSTALLATION


id092200012600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

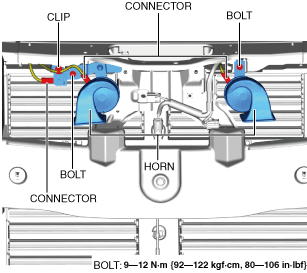

4.  Disconnect the connectors.

ac30zw00001909

5.  Remove the clip.

6.  Remove the bolts.

7.  Remove the horn.

8.  Install in the reverse order of removal.

9.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

11.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
