NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION

id092200052600

Front

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

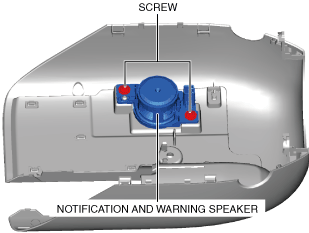

3.  Remove the screws.

am3zzw00024022

4.  Remove the notification and warning speaker (front) from the lower column cover.

5.  Install in the reverse order of removal.

Rear

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(E)].)

(5)  Power liftgate (PLG) rear switch (with power liftgate (PLG) rear switch) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(6)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(7)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION [(E)].)

(8)  Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION.)

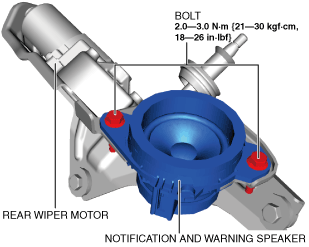

3.  Remove the bolts. (See Bolt installation note.)

am3zzw00024025

4.  Remove the notification and warning speaker (rear).

5.  Install in the reverse order of removal.

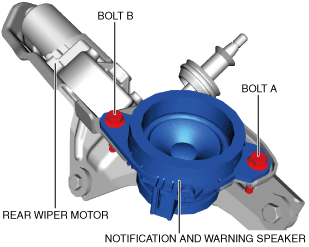

Bolt installation note

1.  Temporarily tighten bolt A.

ac30zw00003092

2.  Temporarily tighten bolt B.

3.  Completely tighten bolt A.

4.  Completely tighten bolt B.
