DETERMINING SHORT TO GROUND LOCATION (CAN-BUS No.5) [(E)]

DETERMINING SHORT TO GROUND LOCATION (CAN-BUS No.5) [(E)]


id1002x2003400

Caution
•  Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.
(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

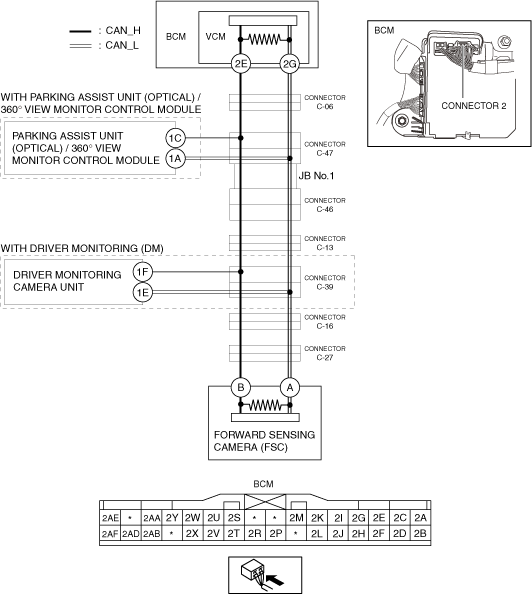

System Wiring Diagram

am3zzw00027508

Determination Procedure

Caution
•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.
•  When inspecting the connector, touch it with a paper clip or similar thin pin without directly inserting a tester probe into the terminal.

Step

Inspection

Action

1
INSPECT CAN LINE IN BODY CONTROL MODULE (BCM) FOR SHORT TO GROUND
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the connector 2 which has body control module (BCM) terminals 2E and 2G.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E (wiring harness side) and body ground
―  Between body control module (BCM) terminal 2G (wiring harness side) and body ground
•  Is there continuity?
Yes
Go to the next step.
No
Replace the body control module (BCM) because there is a short to ground in the body control module (BCM).
2
INSPECT FOR SHORT TO GROUND BETWEEN BODY CONTROL MODULE (BCM) AND CONNECTOR C-06
•  Disconnect the connector C-06.
•  Connect the connector 2 which has body control module (BCM) terminals 2E and 2G.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the body control module (BCM) and connector C-06 because the wiring harness is shorted to ground.
No
Go to the next step.
3
INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-47 AND CONNECTOR C-06
•  Disconnect the connector C-47.
•  Connect the connector C-06.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the connector C-47 and connector C-06 because the wiring harness is shorted to ground.
No
Go to the next step.
4
INSPECT FOR SHORT TO GROUND BETWEEN PARKING ASSIST UNIT (OPTICAL) / 360° VIEW MONITORING CAMERA UNIT AND CONNECTOR C-47
•  Inspect for continuity at the following terminals:
―  Between parking assist unit (optical) / 360° view monitoring camera unit terminal 1C and body ground
―  Between parking assist unit (optical) / 360° view monitoring camera unit terminal 1A and body ground
•  Is there continuity?
Yes
Go to the next step.
No
Go to Step 6.
5
INSPECT CAN LINE IN PARKING ASSIST UNIT (OPTICAL) / 360° VIEW MONITORING CAMERA UNIT FOR SHORT TO GROUND
•  Disconnect the parking assist unit (optical) / 360° view monitoring camera unit connector.
•  Inspect for continuity at the following terminals:
―  Between parking assist unit (optical) / 360° view monitoring camera unit terminal 1C (wiring harness side) and body ground
―  Between parking assist unit (optical) / 360° view monitoring camera unit terminal 1A (wiring harness side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the parking assist unit (optical) / 360° view monitoring camera unit and connector C-47 because the wiring harness is shorted to ground.
No
Replace the parking assist unit (optical) / 360° view monitoring camera unit because there is a short to ground in the parking assist unit (optical) / 360° view monitoring camera unit.
6
INSPECT CAN LINE IN JB No.1 FOR SHORT TO GROUND
•  Disconnect the connector C-46.
•  Connect the connector C-47.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Replace the JB No.1 because there is a short to ground in the JB No.1.
No
Go to the next step.
7
INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-13 AND CONNECTOR C-46
•  Disconnect the connector C-13.
•  Connect the connector C-46.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the connector C-13 and connector C-46 because the wiring harness is shorted to ground.
No
Go to the next step.
8
INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-39 AND CONNECTOR C-13
•  Disconnect the connector C-39.
•  Connect the connector C-13.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the connector C-39 and connector C-13 because the wiring harness is shorted to ground.
No
Go to the next step.
9
INSPECT FOR SHORT TO GROUND BETWEEN DRIVER MONITORING CAMERA UNIT AND CONNECTOR C-39
•  Inspect for continuity at the following terminals:
―  Between driver monitoring camera unit terminal 1F and body ground
―  Between driver monitoring camera unit terminal 1E and body ground
•  Is there continuity?
Yes
Go to the next step.
No
Go to Step 11.
10
INSPECT CAN LINE IN DRIVER MONITORING CAMERA UNIT FOR SHORT TO GROUND
•  Disconnect the driver monitoring camera unit connector.
•  Inspect for continuity at the following terminals:
―  Between driver monitoring camera unit terminal 1F (wiring harness side) and body ground
―  Between driver monitoring camera unit terminal 1E (wiring harness side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the driver monitoring camera unit and connector C-39 because the wiring harness is shorted to ground.
No
Replace the driver monitoring camera unit because there is a short to ground in the driver monitoring camera unit.
11
INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-16 AND CONNECTOR C-39
•  Disconnect the connector C-16.
•  Connect the connector C-39.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the connector C-16 and connector C-39 because the wiring harness is shorted to ground.
No
Go to the next step.
12
INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-27 AND CONNECTOR C-16
•  Disconnect the connector C-27.
•  Connect the connector C-16.
•  Inspect for continuity at the following terminals:
―  Between body control module (BCM) terminal 2E and body ground
―  Between body control module (BCM) terminal 2G and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the connector C-27 and connector C-16 because the wiring harness is shorted to ground.
No
Go to the next step.
13
INSPECT CAN LINE IN FORWARD SENSING CAMERA (FSC) FOR SHORT TO GROUND
•  Disconnect the forward sensing camera (FSC) connector.
•  Inspect for continuity at the following terminals:
―  Between forward sensing camera (FSC) terminal B (wiring harness side) and body ground
―  Between forward sensing camera (FSC) terminal A (wiring harness side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness between the forward sensing camera (FSC) and connector C-27 because the wiring harness is shorted to ground.
No
Replace the forward sensing camera (FSC) because there is a short to ground in the forward sensing camera (FSC).
