DTC P1B06:00 [Mazda M Hybrid BATTERY]

id140204314500

Details On DTCs

Description

Voltage at Mazda M Hybrid battery terminal 1D: Voltage increase

Detection condition

Determination conditions

•  The voltage at Mazda M Hybrid battery terminal 1D is more than 16.5 V.

Preconditions

•  Mazda M Hybrid battery is any of the following conditions (PID: BECM_STAT)

―  STANDBY

―  PRECHARGE

―  READY

•  The following DTCs are not detected:

―  P1B07:16 and P1B07:17

Malfunction determination period

•  5 s period

Drive cycle

•  1

Self test type

•  CMDTC self test, ODDTC self test

Sensor used

•  Mazda M Hybrid battery

Fail-safe function

•  Inhibits the i-stop control.

Vehicle status when DTCs are output

•  Inhibits the i-stop control.

Possible cause

•  Mazda M Hybrid battery power supply circuit malfunction

•  Mazda M Hybrid battery malfunction

Description	Voltage at Mazda M Hybrid battery terminal 1D: Voltage increase
Detection condition	Determination conditions	• The voltage at Mazda M Hybrid battery terminal 1D is more than 16.5 V.
Preconditions	• Mazda M Hybrid battery is any of the following conditions (PID: BECM_STAT) ― STANDBY ― PRECHARGE ― READY • The following DTCs are not detected: ― P1B07:16 and P1B07:17
Malfunction determination period	• 5 s period
Drive cycle	• 1
Self test type	• CMDTC self test, ODDTC self test
Sensor used	• Mazda M Hybrid battery
Fail-safe function	• Inhibits the i-stop control.
Vehicle status when DTCs are output	• Inhibits the i-stop control.
Possible cause	• Mazda M Hybrid battery power supply circuit malfunction • Mazda M Hybrid battery malfunction

System Wiring Diagram

• Not applicable

Function Explanation (DTC Detection Outline)

• If the voltage at Mazda M Hybrid battery terminal 1D is more than 16.5 V for a continuous 5 s, the Mazda M Hybrid battery determines a malfunction and stores a DTC.

Repeatability Verification Procedure

1. Switch the ignition ON (engine off or on) and wait for 5 s or more.

PID Item/Simulation Item Used In Diagnosis

• Not applicable

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY DC-DC CONVERTER (Mazda M Hybrid) DTC

•  Perform the DTC inspection for the DC-DC converter (Mazda M Hybrid).
(See DTC INSPECTION.)

•  Is DTC U3000:49 displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC U3000:49 [DC-DC CONVERTER (Mazda M Hybrid)].)

No

Go to the next step.

3

VERIFY WHETHER MALFUNCTION IS PRESENT OR PAST

•  Perform the DTC inspection for the Mazda M Hybrid battery.
(See DTC INSPECTION.)

•  Is DTC P1B06:00 a present malfunction?

Yes

Go to Step 5.

No

Go to the next step.

4

PERFORM REPLICATION TEST

•  Switch the ignition off.

•  Switch the ignition ON (engine off or on) and wait for 5 s or more.

•  Perform the DTC inspection for the Mazda M Hybrid battery.
(See DTC INSPECTION.)

•  Is DTC P1B06:00 a present malfunction?

Yes

Go to the next step.

No

The system is normal. (Explain to the customer that a DTC may be displayed when large vibration is applied in the upward/downward direction such as when driving over an uneven road.)

Go to repair completion verification 2.

5

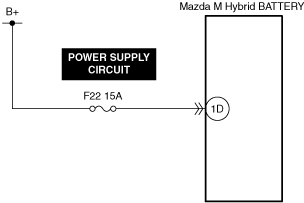

INSPECT Mazda M Hybrid BATTERY POWER SUPPLY CIRCUIT

•  Inspect the applicable circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the Mazda M Hybrid battery and perform the repair completion verification 2.
(See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

Repair completion verification 1

INSPECT Mazda M Hybrid BATTERY FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the Mazda M Hybrid battery.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the Mazda M Hybrid battery and perform the repair completion verification.
(See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY DC-DC CONVERTER (Mazda M Hybrid) DTC • Perform the DTC inspection for the DC-DC converter (Mazda M Hybrid). (See DTC INSPECTION.) • Is DTC U3000:49 displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC U3000:49 [DC-DC CONVERTER (Mazda M Hybrid)].)
2		No	Go to the next step.
3	VERIFY WHETHER MALFUNCTION IS PRESENT OR PAST • Perform the DTC inspection for the Mazda M Hybrid battery. (See DTC INSPECTION.) • Is DTC P1B06:00 a present malfunction?	Yes	Go to Step 5.
3		No	Go to the next step.
4	PERFORM REPLICATION TEST • Switch the ignition off. • Switch the ignition ON (engine off or on) and wait for 5 s or more. • Perform the DTC inspection for the Mazda M Hybrid battery. (See DTC INSPECTION.) • Is DTC P1B06:00 a present malfunction?	Yes	Go to the next step.
4		No	The system is normal. (Explain to the customer that a DTC may be displayed when large vibration is applied in the upward/downward direction such as when driving over an uneven road.) Go to repair completion verification 2.
5	INSPECT Mazda M Hybrid BATTERY POWER SUPPLY CIRCUIT • Inspect the applicable circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the Mazda M Hybrid battery and perform the repair completion verification 2. (See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)
5		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
Repair completion verification 1	INSPECT Mazda M Hybrid BATTERY FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the Mazda M Hybrid battery. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the Mazda M Hybrid battery and perform the repair completion verification. (See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
