Mazda M Hybrid BATTERY REMOVAL/INSTALLATION

id144200001000

Caution

•  For handling the Mazda M Hybrid battery safely, refer to [Mazda M Hybrid SERVICE CAUTIONS]. (See Mazda M Hybrid SERVICE CAUTIONS.)

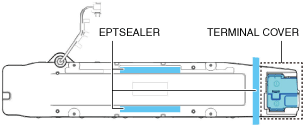

•  Be careful not to hold the following locations when removing/installing the Mazda M Hybrid battery. Otherwise, it could be damaged.

am3zzw00031046

―  Terminal cover

―  Eptsealer

•  Clean the duct of the floor under cover (RH) when installing the Mazda M Hybrid battery. Otherwise, Mazda M Hybrid may not operate normally.

1.  Switch the ignition OFF.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Disconnect the ground plate. (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Remove the following parts.

(1)  Brace bar (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(2)  Tunnel member (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5.  Disconnect the connector.

am3zzw00031047

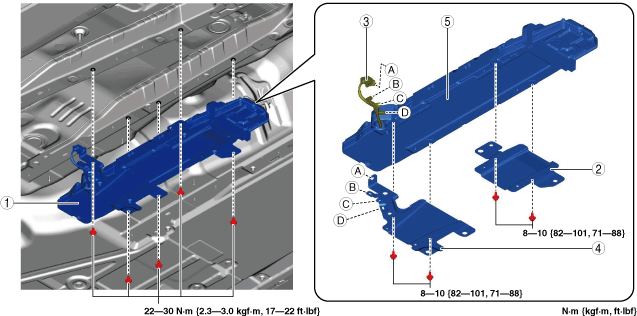

6.  Remove in the order shown in the figure.

7.  Install in the reverse order of removal.

am3zzw00031048

1	Mazda M Hybrid battery component
2	Bracket No.1 (See Bracket Installation Note.)
3	Short-cord (See Short-cord Installation Note.)
4	Bracket No.2 (See Bracket Installation Note.)
5	Mazda M Hybrid battery

Bracket Installation Note

1.  Align the brackets with the positioning pins.

am3zzw00031049

2.  Tighten the bolts to the specified torque.

Short-cord Installation Note

1.  Install the short cord to bracket No.2 in the order shown in the figure.

aaxjjw00023649
