Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|

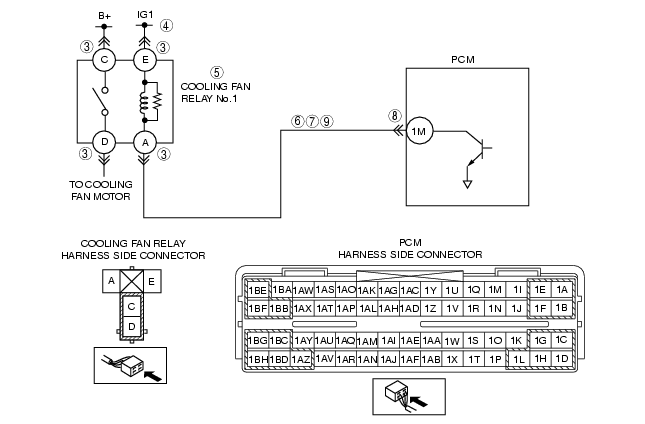

INSPECT COOLING FAN RELAY NO.1 CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect cooling fan relay No.1 connector.
• Inspect for poor connection (such as damaged, pulled-out pins, corrosion, etc.).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal and/or connector, then go to Step 10.
|
No
|
Go to the next step.
|
||
4
|
INSPECT COOLING FAN RELAY NO.1 POWER CIRCUIT FOR OPEN CIRCUIT
• Turn ignition switch to ON (Engine off).
• Measure voltage between cooling fan relay No.1 terminal E (harness side) and body ground.
• Is voltage B+?
|
Yes
|
Go to the next step.
|
No
|
Replace or replace the wiring harness for an open circuit, then go to Step 10.
|
||
5
|
INSPECT COOLING FAN RELAY NO.1
• Inspect cooling fan relay No.1.
(See RELAY INSPECTION.)
• Is cooling fan relay No.1 normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the cooling fan relay No.1, then go to Step 10.
|
||
6
|
INSPECT COOLING FAN RELAY NO.1 CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
• Measure voltage between cooling fan relay No.1 terminal A (harness-side) and body ground.
• Is voltage B+?
|
Yes
|
Repair or replace the wiring harness for short to power supply, then go to Step 10.
|
No
|
Go to the next step.
|
||
7
|
INSPECT COOLING FAN RELAY NO.1 CONTROL CIRCUIT FOR SHORT TO GROUND
• inspect for continuity between cooling fan relay No.1 terminal A (harness side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for an open circuit, then go to Step 10.
|
No
|
Go to the next step.
|
||
8
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal and/or connector, then go to Step 10.
|
No
|
Go to the next step.
|
||
9
|
INSPECT COOLING FAN RELAY NO.1 CONTROL CIRCUIT FOR OPEN CIRCUIT
• inspect for continuity between cooling fan relay No.1 terminal A (harness-side) and PCM terminal 1M (harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for an open circuit, then go to the next step.
|
||
10
|
VERIFY TROUBLESHOOTING OF DTC P0480 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Perform the KOEO or KOER self-test.
• Is the DTC P0480 present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Is any DTC present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [L8, LF, L3].)
|
No
|
Troubleshooting completed.
|
