WASTEGATE CONTROL SOLENOID VALVE INSPECTION [L3 Turbo]

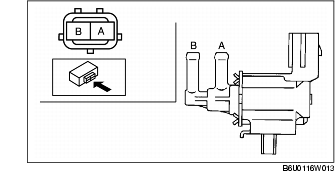

1. Remove the wastegate control solenoid valve. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

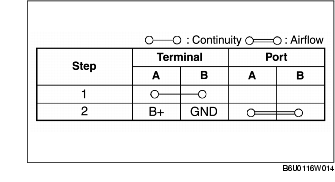

2. Inspect the airflow between the ports under the following conditions.

• If not as specified, replace the wastegate control solenoid valve.

• If as specified, carry out the "Circuit Open/Short Inspection".

Circuit Open/Short Inspection

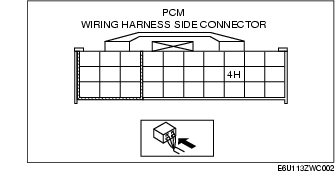

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)

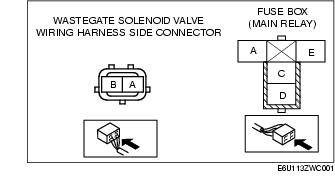

2. Inspect the following wiring harness for an open or short circuit (continuity check).

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

- Variable swirl solenoid valve terminal B and PCM terminal 4H

- Variable swirl solenoid valve terminal A and main relay terminal C

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

- Variable swirl solenoid valve terminal B and body ground

- Variable swirl solenoid valve terminal A and power supply
