1. Disconnect the negative battery cable.
2. Disconnect the EGR valve connector.

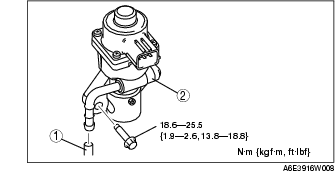

3. Remove in the order indicated in the table.
|
1
|
Water hose
(See Water Hose Removal Note.)
|
|
2
|
EGR valve
(See EGR Valve Removal Note.)
|
4. Install in the reverse order of removal.
1. Remove the air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L3].)
2. Remove the upper radiator hose. (See RADIATOR REMOVAL/INSTALLATION [L8, LF, L3].)
