NEUTRAL SWITCH INSPECTION [L3 Turbo]

Note

• Perform the following inspection only when directed.

Continuity Inspection

1. Disconnect the negative battery cable.

2. Remove the neutral switch. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [G35M-R].)

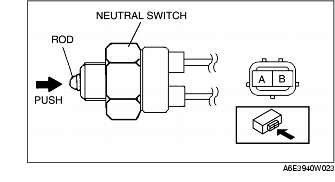

3. Inspect for continuity between the neutral switch terminals using a tester.

• If the neutral switch is normal, but PID value is out of specification, perform the "Circuit Open/Short Inspection".

• If not as specified, replace the neutral switch.

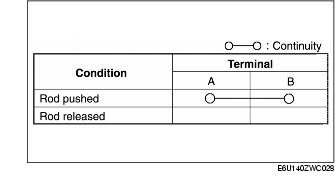

Specification

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)

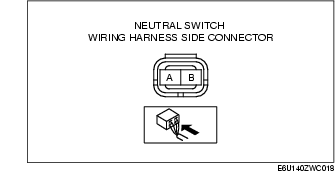

2. Inspect the following harnesses for an open or short circuit. (Continuity check)

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

- Neutral switch terminal B and PCM terminal 1W

- Neutral switch terminal A and body ground

Short circuit

• If there is no continuity, there is a short circuit. Repair or replace the wiring harness.

- Neutral switch terminal B and body ground
