ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [L3 Turbo]

Note

• Perform the following inspection only when directed.

Voltage Inspection

1. Turn the ignition switch to the ON position (Engine off).

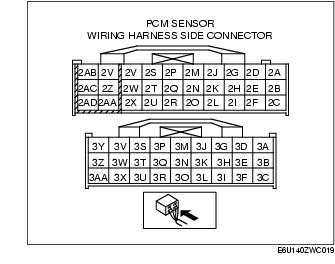

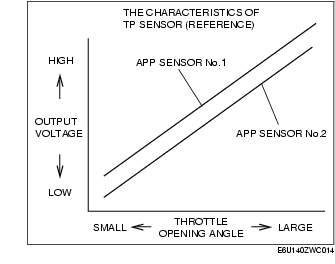

2. Verify that the PCM terminal 2A and 3D change smoothly while throttle valve is gradually opened.

• If as verified, go to next step.

• If not as verified, perform the "Circuit Open/Short Inspection".

- If there is no open or short circuit, replace the throttle body. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

3. Verify that the PCM terminal 2A and 3D voltages are as shown in the following table.

• If voltage is not as following table, perform the "Circuit Open/Short Inspection".

- If there is no open or short circuit, replace accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L3 Turbo].)

APP sensor output voltage

Condition	PCM terminal 3D (APP sensor No.1)	PCM terminal 2A (APP sensor No.2)
APP is released	Approx. 1.6 V	Approx. 1.0 V
APP is depressed	Approx. 3.9 V	Approx. 3.4 V

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)

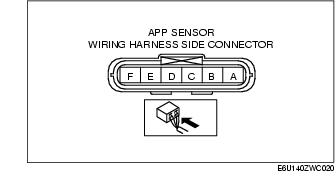

2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

- APP sensor terminal A and PCM terminal 2K

- APP sensor terminal B and PCM terminal 2H

- APP sensor terminal C and PCM terminal 2A

- APP sensor terminal D and PCM terminal 3G

- APP sensor terminal E and PCM terminal 3A

- APP sensor terminal F and PCM terminal 3D

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

- APP sensor terminal A and power supply

- APP sensor terminal A and body ground

- APP sensor terminal B and power supply

- APP sensor terminal C and power supply

- APP sensor terminal C and body ground

- APP sensor terminal D and power supply

- APP sensor terminal D and body ground

- APP sensor terminal E and power supply

- APP sensor terminal F and power supply

- APP sensor terminal F and body ground
