1. Disconnect the negative battery cable.
2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

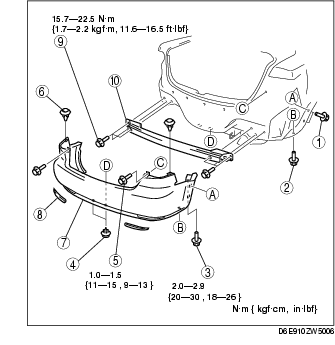

3. Remove in the order indicated in the table.
|
1
|
Screw A
|
|
2
|
Screw B
|
|
3
|
Screw C
|
|
4
|
Fastener A
|
|
5
|
Bolt A
|
|
6
|
Fastener B
|
|
7
|
Rear bumper
(See Rear bumper Removal Note)
|
|
8
|
Refractor
(See Refractor Removal Note)
|
|
9
|
Bolt B
|
|
10
|
Rear bumper reinforcement
|
4. Install in the reverse order of removal.

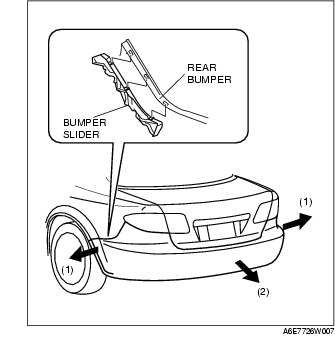

1. Pull the rear bumper ends (wheel arch) outward to disengage with the bumper slider.
1. Spread the rear bumper ends (wheel arches) apart.
2. Attach the rear bumper to the body.
3. Press the rear bumper connection portion into the body to engage with the bumper slider.

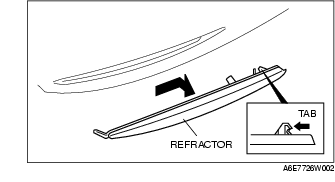

1. Lift the refractor up in the direction of the arrow, then unhook it from the rear bumper.
