DTC P24B1:00 [PCM (SKYACTIV-D)]

id0102t5729000

Note

• To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

System malfunction location

PM sensor circuit high input

Detection condition

Determination conditions

•  The internal circuit voltage of the PM sensor is more than 4.1 V for a continuous 2 s.

Preconditions

•  Battery voltage: 10.9—16 V

•  Ignition switched ON (engine off)

•  The following DTCs is not detected:

―  PM sensor: P24D0:00, U02A3:00

Drive cycle

•  1

Self test type

•  CMDTC self test

Sensor used

•  PM sensor

•  PCM

Fail-safe

•  Not applicable

Vehicle status when dtcs are output

•  Not applicable

Possible cause

•  Short to power supply in PM sensor CAN communication line

•  PM sensor connector or terminals malfunction

•  PCM connector or terminals malfunction

•  PM sensor malfunction

•  PCM malfunction

System malfunction location	PM sensor circuit high input
Detection condition	Determination conditions	• The internal circuit voltage of the PM sensor is more than 4.1 V for a continuous 2 s.
Preconditions	• Battery voltage: 10.9—16 V • Ignition switched ON (engine off) • The following DTCs is not detected: ― PM sensor: P24D0:00, U02A3:00
Drive cycle	• 1
Self test type	• CMDTC self test
Sensor used	• PM sensor • PCM
Fail-safe	• Not applicable
Vehicle status when dtcs are output	• Not applicable
Possible cause	• Short to power supply in PM sensor CAN communication line • PM sensor connector or terminals malfunction • PCM connector or terminals malfunction • PM sensor malfunction • PCM malfunction

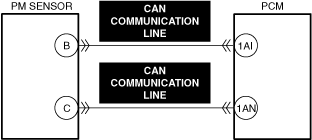

System Wiring Diagram

Function Explanation (DTC Detection Outline)

• The PM sensor performs diagnosis independently and if it detects a short to power supply in the internal circuit, it sends a malfunction signal to the PCM.

• When a malfunction signal is received from PM sensor, the PCM stores a DTC.

Repeatability Verification Procedure

1. Perform the "COMPULSORY DIESEL PARTICULATE FILTER REGENERATION". (See COMPULSORY DIESEL PARTICULATE FILTER REGENERATION [SKYACTIV-D 1.8].)

2. Start the engine and leave it idling for 3 min.

PID Item/Simulation Item Used In Diagnosis

• Not applicable

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1

PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

2

PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA

•  Is the DTC P24B1:00 on FREEZE FRAME DATA?

Yes

Go to the next step.

No

Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA.

(See DTC TABLE [PCM (SKYACTIV-D)].)

3

PURPOSE: RECORD FREEZE FRAME DATA/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the FREEZE FRAME DATA/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS (PM sensor related) on the repair order.

—

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
No	Go to the next step.
2	PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA • Is the DTC P24B1:00 on FREEZE FRAME DATA?	Yes	Go to the next step.
No	Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA. (See DTC TABLE [PCM (SKYACTIV-D)].)
3	PURPOSE: RECORD FREEZE FRAME DATA/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS TO UTILIZE WITH REPEATABILITY VERIFICATION • Recording can be facilitated using the screen capture function of the PC. • Record the FREEZE FRAME DATA/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS (PM sensor related) on the repair order.	—	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure

• Step 1—4

― Perform inspection of PM sensor signal related parts.

• Repair completion verification

― Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

1

PURPOSE: INSPECT PM SENSOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

PURPOSE: INSPECT PM SENSOR CAN COMMUNICATION FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

PURPOSE: INSPECT PM SENSOR FOR MALFUNCTION

•  Inspect the applicable part.
(See PM SENSOR INSPECTION [SKYACTIV-D 1.8].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See PM SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Repair completion verification 1

PURPOSE: VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Implement the repeatability verification procedure.
(See Repeatability Verification Procedure)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

PURPOSE: VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	PURPOSE: INSPECT PM SENSOR CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
1		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	PURPOSE: INSPECT PM SENSOR CAN COMMUNICATION FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	PURPOSE: INSPECT PM SENSOR FOR MALFUNCTION • Inspect the applicable part. (See PM SENSOR INSPECTION [SKYACTIV-D 1.8].) • Is the part normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See PM SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1	PURPOSE: VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Implement the repeatability verification procedure. (See Repeatability Verification Procedure) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	PURPOSE: VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
