DTC P24D0:00 [PCM (SKYACTIV-D)]

id0102t5729600

Note

• To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

Description

PM sensor: internal supply voltage malfunction

Detection condition

Determination conditions

•  The PM sensor internal supply voltage is not within the specified value.

Preconditions

•  Battery voltage: 10.9—16 V

•  Ignition switched ON

•  The following DTCs is not detected:

―  PM sensor: U02A3:00

Drive cycle

•  1

Self test type

•  CMDTC self test

Sensor used

•  PM sensor control unit

•  PCM

Fail-safe

•  Not applicable

Vehicle status when dtcs are output

•  Not applicable

Possible cause

•  PM sensor control unit connector or terminals malfunction

•  SCR relay malfunction

•  F13 15 A fuse malfunction

•  Short to ground in SCR relay power supply circuit

•  Short to ground in PM sensor power supply circuit

•  Open circuit in PM sensor power supply circuit

•  Open circuit in SCR relay ground circuit

•  PCM connector or terminals malfunction

•  PM sensor control unit malfunction

―  Internal malfunction

•  PCM malfunction

Description	PM sensor: internal supply voltage malfunction
Detection condition	Determination conditions	• The PM sensor internal supply voltage is not within the specified value.
Preconditions	• Battery voltage: 10.9—16 V • Ignition switched ON • The following DTCs is not detected: ― PM sensor: U02A3:00
Drive cycle	• 1
Self test type	• CMDTC self test
Sensor used	• PM sensor control unit • PCM
Fail-safe	• Not applicable
Vehicle status when dtcs are output	• Not applicable
Possible cause	• PM sensor control unit connector or terminals malfunction • SCR relay malfunction • F13 15 A fuse malfunction • Short to ground in SCR relay power supply circuit • Short to ground in PM sensor power supply circuit • Open circuit in PM sensor power supply circuit • Open circuit in SCR relay ground circuit • PCM connector or terminals malfunction • PM sensor control unit malfunction ― Internal malfunction • PCM malfunction

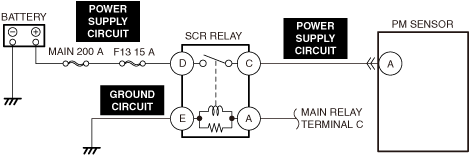

System Wiring Diagram

Function Explanation (DTC Detection Outline)

• PM sensor performs diagnosis independently and if it detects a power supply voltage circuit malfunction, it sends a malfunction signal to the PCM.

• When the malfunction signal is received from PM sensor, the PCM stores a DTC.

Repeatability Verification Procedure

1. Perform the "COMPULSORY DIESEL PARTICULATE FILTER REGENERATION". (See COMPULSORY DIESEL PARTICULATE FILTER REGENERATION [SKYACTIV-D 1.8].)

2. Idle the engine for 3 min.

PID Item/Simulation Item Used In Diagnosis

• Not applicable

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1

PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

2

PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA

•  Is DTC P24D0:00 causing the freeze frame data?

Yes

Go to the next step.

No

Go to the troubleshooting procedure for DTC on freeze frame data.

(See DTC TABLE [PCM (SKYACTIV-D)].)

3

PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
No	Go to the next step.
2	PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA • Is DTC P24D0:00 causing the freeze frame data?	Yes	Go to the next step.
No	Go to the troubleshooting procedure for DTC on freeze frame data. (See DTC TABLE [PCM (SKYACTIV-D)].)
3	PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.

Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure

• Step 1—7

― Perform an inspection of the connectors and wiring harnesses between the PM sensor and SCR relay.

• Repair completion verification

― Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

1

PURPOSE: INSPECT PM SENSOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

PURPOSE: INSPECT SCR RELAY

•  Switch the ignition off.

•  Remove the SCR relay.
(See RELAY LOCATION [(E)].)

•  Inspect the SCR relay.
(See RELAY INSPECTION.)

•  Is there any malfunction?

Yes

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

No

Go to the next step.

3

PURPOSE: INSPECT F13 15 A FUSE

•  Remove the F13 15 A Fuse.

•  Inspect the F13 15 A Fuse.

•  Is the fuse normal?

Yes

Reinstall the F13 15 A Fuse, then go to the next step.

No

Replace the F13 15 A Fuse and perform the repair completion verification.

4

PURPOSE: INSPECT SCR RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

PURPOSE: INSPECT PM SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the applicable circuit for a short to ground and open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

PURPOSE: INSPECT SCR RELAY GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Replace the PM sensor, then go to the next step.

(See PM SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1

PURPOSE: VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Implement the repeatability verification procedure.
(See Repeatability Verification Procedure)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

PURPOSE: VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	PURPOSE: INSPECT PM SENSOR CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
1		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	PURPOSE: INSPECT SCR RELAY • Switch the ignition off. • Remove the SCR relay. (See RELAY LOCATION [(E)].) • Inspect the SCR relay. (See RELAY INSPECTION.) • Is there any malfunction?	Yes	Repair or replace the malfunctioning location and perform the repair completion verification. (See RELAY LOCATION [(E)].)
2		No	Go to the next step.
3	PURPOSE: INSPECT F13 15 A FUSE • Remove the F13 15 A Fuse. • Inspect the F13 15 A Fuse. • Is the fuse normal?	Yes	Reinstall the F13 15 A Fuse, then go to the next step.
3		No	Replace the F13 15 A Fuse and perform the repair completion verification.
4	PURPOSE: INSPECT SCR RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	PURPOSE: INSPECT PM SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the applicable circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	PURPOSE: INSPECT SCR RELAY GROUND CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Replace the PM sensor, then go to the next step. (See PM SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1	PURPOSE: VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Implement the repeatability verification procedure. (See Repeatability Verification Procedure) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	PURPOSE: VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
