DTC U0111:00 [PCM (SKYACTIV-X)]

id0102u9682900

Outline

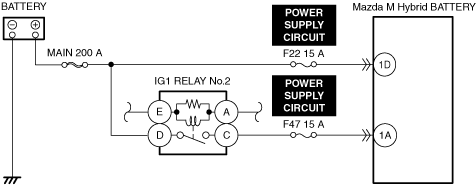

System malfunction location

CAN communication: communication error to Mazda M Hybrid battery (CAN BUS No.2)

Detection condition

•  Communication error between the PCM and Mazda M Hybrid battery continues for 5 s or more.

Preconditions

•  The ignition switched ON (engine off or on) for 1.5 s.

Fail-safe

•  Inhibits engine-stop by operating the i-stop function.^*1

If U0111:00 is stored before Mazda M Hybrid operates:

•  Power is supplied to the vehicle's electrical devices (12 V power supply) from the battery.

If U0111:00 is stored while or after Mazda M Hybrid operates:

•  Inhibits the motor assist control.

^*1: If U0111:00 is stored during engine stop by i-stop control, restart the engine using the starter.

Possible cause

•  CAN communication line malfunction between PCM and Mazda M Hybrid battery

•  IG1 relay No.2 malfunction

•  Mazda M Hybrid battery connector or terminals malfunction

•  Mazda M Hybrid battery power supply circuit malfunction

•  Ground plate loose

•  Mazda M Hybrid battery malfunction (internal malfunction or power supply malfunction)

•  PCM malfunction

System malfunction location	CAN communication: communication error to Mazda M Hybrid battery (CAN BUS No.2)
Detection condition	• Communication error between the PCM and Mazda M Hybrid battery continues for 5 s or more. Preconditions • The ignition switched ON (engine off or on) for 1.5 s.
Fail-safe	• Inhibits engine-stop by operating the i-stop function.^1 If U0111:00 is stored before Mazda M Hybrid operates: • Power is supplied to the vehicle's electrical devices (12 V power supply) from the battery. If U0111:00 is stored while or after Mazda M Hybrid operates: • Inhibits the motor assist control. ^1: If U0111:00 is stored during engine stop by i-stop control, restart the engine using the starter.
Possible cause	• CAN communication line malfunction between PCM and Mazda M Hybrid battery • IG1 relay No.2 malfunction • Mazda M Hybrid battery connector or terminals malfunction • Mazda M Hybrid battery power supply circuit malfunction • Ground plate loose • Mazda M Hybrid battery malfunction (internal malfunction or power supply malfunction) • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT FOR OTHER RELATED DTCs

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-X)].)

No

Go to the next step.

4

INSPECT IG1 RELAY No.2 FOR MALFUNCTION

•  Inspect the applicable part.
(See RELAY INSPECTION.)

•  Is the part normal?

Yes

Install the relay, then go to the next step.

(See RELAY LOCATION [(E)].)

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

5

INSPECT Mazda M Hybrid BATTERY CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT Mazda M Hybrid BATTERY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the power supply circuit for an open circuit and short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT GROUND PLATE INSTALLATION CONDITION

•  Inspect the ground plate for looseness.
(See GROUND PLATE DISCONNECTION/CONNECTION.)

•  Is there any malfunction?

Yes

Repair or replace the malfunctioning location and perform the repair completion verification.

No

Go to the next step.

8

INSPECT Mazda M Hybrid BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See Mazda M Hybrid BATTERY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
