DTC P2101:00 [PCM (SKYACTIV-X)]

id0102u9707700

Outline

System malfunction location

Throttle valve actuator control motor circuit range/performance problem

Detection condition

•  The PCM turns the main relay on, but if the input voltage is 6.0 V or less, then the PCM determines that the main relay control circuit voltage is low.

•  There is a system error in the electrical throttle control system of the PCM.

Fail-safe

•  Restricts the upper limit of the engine speed.

Possible cause

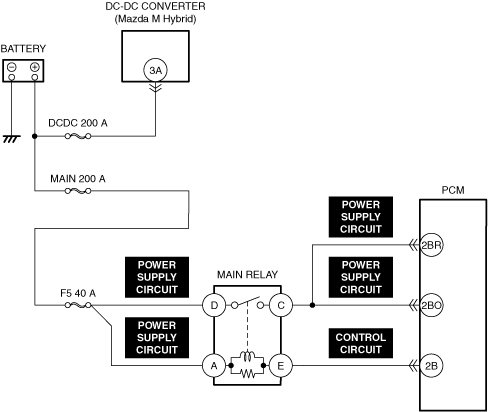

•  Short to ground or open circuit in main relay power supply circuit

•  Short to ground in PCM power supply circuit

•  Short to ground in main relay control circuit

•  PCM connector or terminals malfunction

•  Open circuit in PCM power supply circuit

•  Open circuit in main relay control circuit

•  Throttle valve actuator malfunction

•  PCM malfunction

System malfunction location	Throttle valve actuator control motor circuit range/performance problem
Detection condition	• The PCM turns the main relay on, but if the input voltage is 6.0 V or less, then the PCM determines that the main relay control circuit voltage is low. • There is a system error in the electrical throttle control system of the PCM.
Fail-safe	• Restricts the upper limit of the engine speed.
Possible cause	• Short to ground or open circuit in main relay power supply circuit • Short to ground in PCM power supply circuit • Short to ground in main relay control circuit • PCM connector or terminals malfunction • Open circuit in PCM power supply circuit • Open circuit in main relay control circuit • Throttle valve actuator malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

VERIFY DTCs

•  Perform the DTC inspection for the following modules.
(See DTC INSPECTION.)

―  PCM

―  Mazda M Hybrid battery

―  DC-DC converter (Mazda M Hybrid)

―  Integrated starter generator (ISG)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-X)].)

(See DTC TABLE [Mazda M Hybrid BATTERY].)

(See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].)

(See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)

No

Go to the next step.

4

INSPECT MAIN RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the power supply circuit for an open circuit and short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT PCM POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT MAIN RELAY CONTROL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT PCM POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT MAIN RELAY CONTROL CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

10

INSPECT THROTTLE VALVE

•  Perform the Electronic Control Throttle Operation Inspection.
(See ENGINE CONTROL SYSTEM OPERATION INSPECTION [SKYACTIV-X].)

•  Is there any malfunction?

Yes

Replace the throttle body and perform the repair completion verification.

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

No

Go to the next step.

11

INSPECT THROTTLE VALVE ACTUATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See THROTTLE BODY INSPECTION [SKYACTIV-X 2.0].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	VERIFY DTCs • Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [Mazda M Hybrid BATTERY].) (See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].) (See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)
3		No	Go to the next step.
4	INSPECT MAIN RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the power supply circuit for an open circuit and short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT PCM POWER SUPPLY CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT MAIN RELAY CONTROL CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT PCM POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT MAIN RELAY CONTROL CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
9		No	Repair or replace the malfunctioning location and perform the repair completion verification.
10	INSPECT THROTTLE VALVE • Perform the Electronic Control Throttle Operation Inspection. (See ENGINE CONTROL SYSTEM OPERATION INSPECTION [SKYACTIV-X].) • Is there any malfunction?	Yes	Replace the throttle body and perform the repair completion verification. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
10		No	Go to the next step.
11	INSPECT THROTTLE VALVE ACTUATOR FOR MALFUNCTION • Inspect the applicable part. (See THROTTLE BODY INSPECTION [SKYACTIV-X 2.0].) • Is the part normal?	Yes	Go to the next step.
11		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Perform the KOEO self test. (See DTC INSPECTION.) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
