DTC P2507:00 [PCM (SKYACTIV-X)]

System malfunction location	PCM battery voltage low input
Detection condition	• The PCM monitors the voltage of backup battery positive terminal. If the PCM detects that the battery positive terminal voltage is below 6 V for specified period, the PCM determines that the backup voltage circuit has a malfunction.
Fail-safe	• Not applicable
Possible cause	• Battery malfunction • Short to ground or open circuit in PCM power supply circuit • PCM connector or terminals malfunction • PCM malfunction

System malfunction location

PCM battery voltage low input

Detection condition

• The PCM monitors the voltage of backup battery positive terminal. If the PCM detects that the battery positive terminal voltage is below 6 V for specified period, the PCM determines that the backup voltage circuit has a malfunction.

Fail-safe

• Not applicable

Possible cause

• Battery malfunction

• Short to ground or open circuit in PCM power supply circuit

• PCM connector or terminals malfunction

• PCM malfunction

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
No	Go to the next step.
3	VERIFY DTCs • Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ― PCM ― Mazda M Hybrid battery ― DC-DC converter (Mazda M Hybrid) ― Integrated starter generator (ISG) • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [Mazda M Hybrid BATTERY].) (See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].) (See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)
No	Go to the next step.
4	INSPECT BATTERY FOR MALFUNCTION • Inspect the applicable part. (See BATTERY INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
No	Recharge or replace the battery and perform the repair completion verification. (See BATTERY RECHARGING [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5	INSPECT PCM POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Reconnect all disconnected connectors. • Access the VPWR PID using the M-MDS. (See PID/DATA MONITOR INSPECTION.) • Verify the VPWR PID value. • Is the VPWR PID value B+?	Yes	Go to the next step.
No	Inspect the power supply circuit for an open circuit and short to ground. (See CIRCUIT INSPECTION.) • Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
No	Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Perform the KOEO or KOER self test. (See DTC INSPECTION.) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
No	DTC troubleshooting completed.

Step

Inspection

Results

Action

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

• Record the freeze frame data/snapshot data.

Note

• Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

• Verify related Service Bulletins, on-line repair information, or Service Information availability.

• Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

• If the vehicle is not repaired, go to the next step.

Go to the next step.

VERIFY DTCs

• Perform the DTC inspection for the following modules.

(See DTC INSPECTION.)

― PCM

― Mazda M Hybrid battery

― DC-DC converter (Mazda M Hybrid)

― Integrated starter generator (ISG)

• Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-X)].)

(See DTC TABLE [Mazda M Hybrid BATTERY].)

(See DTC TABLE [DC-DC CONVERTER (Mazda M Hybrid)].)

(See DTC TABLE [INTEGRATED STARTER GENERATOR (ISG)].)

Go to the next step.

INSPECT BATTERY FOR MALFUNCTION

• Inspect the applicable part.

(See BATTERY INSPECTION [(E)].)

• Is the part normal?

Yes

Go to the next step.

Recharge or replace the battery and perform the repair completion verification.

(See BATTERY RECHARGING [(E)].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

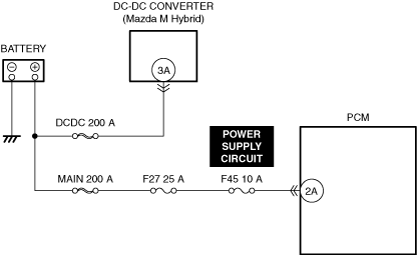

INSPECT PCM POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

• Reconnect all disconnected connectors.

• Access the VPWR PID using the M-MDS.

(See PID/DATA MONITOR INSPECTION.)

• Verify the VPWR PID value.

• Is the VPWR PID value B+?

Yes

Go to the next step.

Inspect the power supply circuit for an open circuit and short to ground.

(See CIRCUIT INSPECTION.)

• Repair or replace the malfunctioning location and perform the repair completion verification.

INSPECT PCM CONNECTOR FOR MALFUNCTION

• Inspect the applicable connector and terminal.

(See CONNECTOR INSPECTION.)

• Are the connector and terminal normal?

Yes

Go to the next step.

Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

• Install/connect the part removed/disconnected during the troubleshooting procedure.

• Clear the DTC recorded in the memory.

(See CLEARING DTC.)

• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

― Perform the KOEO or KOER self test.

(See DTC INSPECTION.)

• Perform the DTC inspection for the PCM.

(See DTC INSPECTION.)

• Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

• If the malfunction recurs, replace the PCM, then go to the next step.

(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

• Perform the DTC inspection.

(See DTC INSPECTION.)

• Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

DTC troubleshooting completed.
