COOLING SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

Home  id0112t1800100

am3zzw00029910

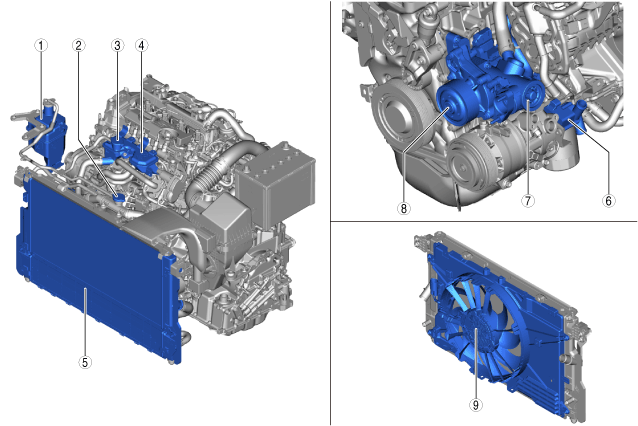

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 1.8].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 1.8].)
3	Water-cooled charge air cooler reserve tank cap (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK CAP INSPECTION [SKYACTIV-D 1.8].)
4	Water-cooled charge air cooler reserve tank (See WATER-COOLED CHARGE AIR COOLER COOLANT LEVEL INSPECTION [SKYACTIV-D 1.8].) (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
5	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 1.8].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 1.8].) (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [SKYACTIV-D 1.8].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 1.8].) (See WATER-COOLED CHARGE AIR COOLER COOLANT LEAKAGE INSPECTION [SKYACTIV-D 1.8].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
