CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0113hf266800

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

2.  Remove the following parts. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Left wall (rear)

•  Rear wall

3.  Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4.  Remove the protector. (See SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

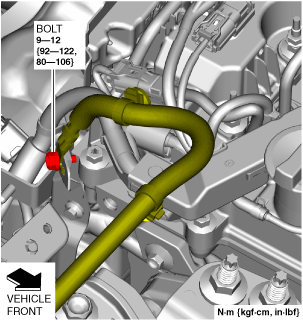

5.  Remove the bolt shown in the figure.

am3zzw00035630

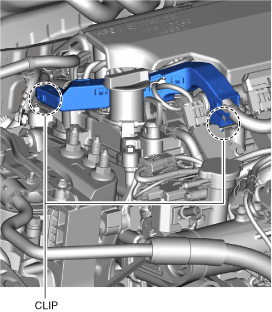

6.  Disconnect the clips shown in the figure.

am3zzw00035631

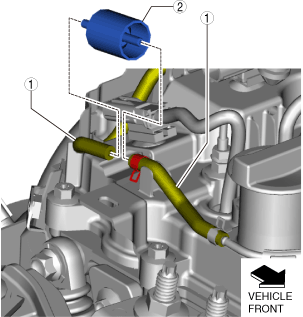

7.  Remove using the procedure shown in the figure.

8.  Install in the reverse order of removal.

am3zzw00035632

1	Vacuum hose (See Vacuum Hose Installation Note.)
2	Check valve

Vacuum Hose Installation Note

1.  Install the vacuum hose as shown in the figure.

Supercharger side

ac30zw00005298

Cylinder head side

ac30zw00005299
