WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0113hf702500
Replacement part
|
Gasket
Quantity: 2
Location of use: Water-cooled charge air cooler
|
Gasket
Quantity: 2
Location of use: Water-cooled charge air cooler duct
|
Oil and chemical type
|
Engine oil
Type: Recommended oil
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the supercharger. (See SUPERCHARGER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3. Remove the engine coolant temperature (ECT) sensor No.3. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0])
4. Remove the intake manifold component. (See INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

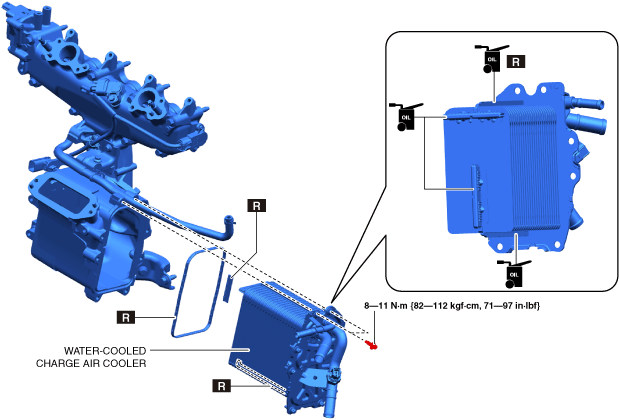

5. Remove the water-cooled charge air cooler.
ac30zw00004903
|
6. Install in the reverse order of removal. (See Water-Cooled Charge Air Cooler Installation Note.)
Water-Cooled Charge Air Cooler Installation Note
1. Install the lips as shown in the figure.
ac30zw00004904
|

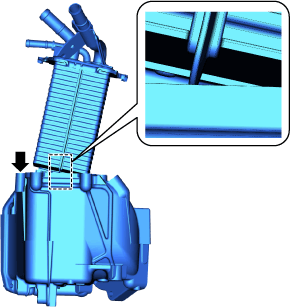

2. Install the water-cooled charge air cooler along the angle of the lip.
ac30zw00004905
|
3. Temporarily tighten the bolt shown in the figure by hand.
ac30zw00004906
|

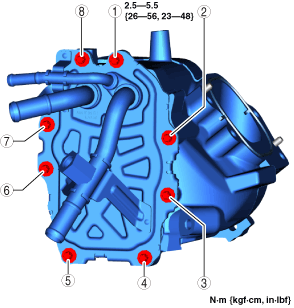

4. Tighten the bolts in the order shown in the figure.
ac30zw00004907
|
5. Tighten the bolts in the order shown in the figure.
ac30zw00004908
|
