EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0115hf801700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove floor under cover No.1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the middle pipe. (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4.  Remove the propeller shaft. (AWD) (See PROPELLER SHAFT REMOVAL/INSTALLATION [(E)].)

5.  Remove the Mazda M Hybrid battery. (See Mazda M Hybrid BATTERY REMOVAL/INSTALLATION.)

6.  Remove using the procedure shown in the figure.

7.  Install in the reverse order of removal.

2WD

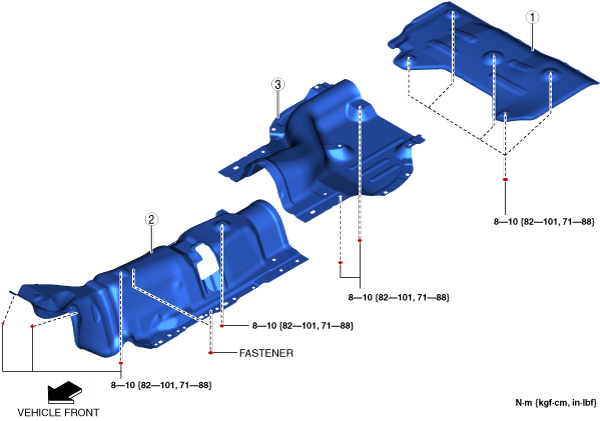

ac30zw00002994

1	Insulator (rear) (See Insulator (Rear) Installation Note.)
2	Insulator (front) (See Insulator (Front) Installation Note.)
3	Insulator (middle) (See Insulator (Middle) Installation Note.)

AWD

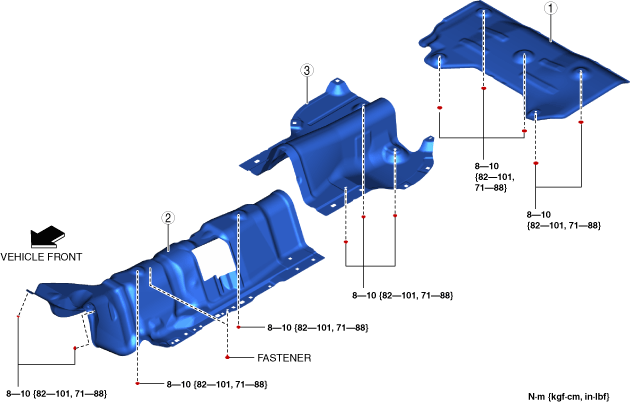

ac30zw00002995

1	Insulator (rear) (See Insulator (Rear) Installation Note.)
2	Insulator (front) (See Insulator (Front) Installation Note.)
3	Insulator (middle) (See Insulator (Middle) Installation Note.)

Insulator (Middle) Installation Note

1.  Align the stud bolts shown in the figure with the insulator (middle) and install.

2WD

ac30zw00002996

AWD

ac30zw00002997

2.  Tighten the remaining nuts to the specified torque.

Insulator (Front) Installation Note

1.  Align the stud bolts shown in the figure with the insulator (front) and install.

am3zzw00035712

2.  Install the fasteners.

3.  Tighten the nuts to the specified torque.

Insulator (Rear) Installation Note

1.  Align the stud bolt shown in the figure with the insulator (rear) and install.

am3zzw00035713

2.  Tighten the nuts to the specified torque.
