EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0116hf801000
Replacement part
|
O-ring
Quantity: 2
Location of use: EGR valve
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3. Remove the left wall (front). (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4. Remove the following parts as a single unit. (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5. Remove the resonance chamber. (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6. Remove using the procedure shown in the figure.
am3zzw00035730
|
|
1
|
EGR valve connector
|
|
2
|
EGR valve (See EGR Valve Installation Note.)
|
7. Install in the reverse order of removal.
EGR Valve Installation Note

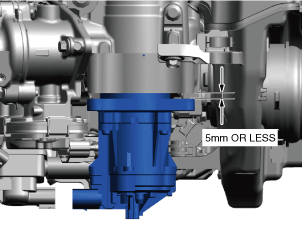

1. After pressing in the EGR valve until the clearance between the EGR valve seating surface and the inlet pipe seating surface is 5 mm or less, tighten the EGR valve installation bolts.
am3zzw00036860
|
