TRANSFER REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

Home  id0316j18006j7

Replacement Part

Caution

•  Performing the following procedures could cause an open circuit in the front ABS wheel speed-sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the TWC.(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

4.  Remove the propeller shaft.(See PROPELLER SHAFT REMOVAL/INSTALLATION [(E)].)

5.  Remove the front crossmember component.(See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

6.  Remove the exhaust manifold (WU-TWC).(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

7.  Remove the front drive shaft (RH).(See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

8.  Remove the heat shield.

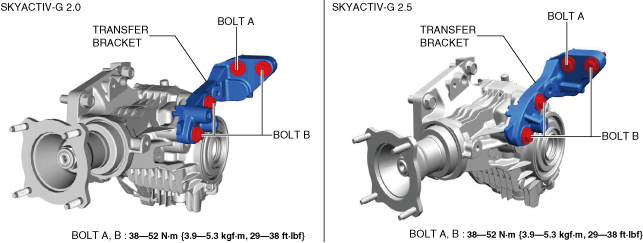

ac30zw00003365

9.  Remove the transfer bracket. (See Transfer Bracket Installation Note.)

ac30zw00003366

10.  Drain the transfer oil.(See TRANSFER OIL REPLACEMENT [ET6AX-EL (E)].)

11.  Remove in the order shown in the figure.

12.  Install in the reverse order of removal.

13.  After the engine and transaxle warms up, inspect for oil leakage and transfer operation.

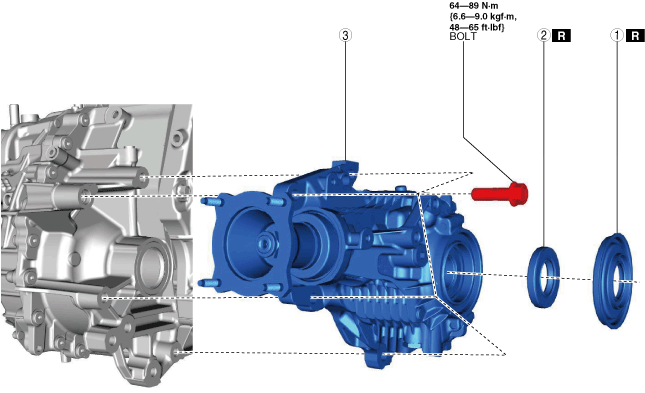

ac30zw00000577

1	Transfer oil seal (RH) No.1 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL].)
2	Transfer oil seal (RH) No.3 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL].)
3	Transfer

Transfer Bracket Installation Note

1.  Install the transfer bracket to the transfer and temporarily tighten bolts A and B.

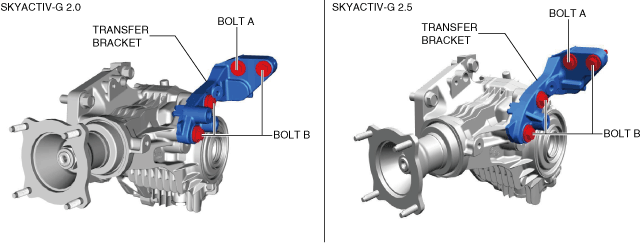

ac30zw00003367

2.  Completely tighten the bolts in the order of A and B.
