DTC C1128:0A [DSC HU/CM]

Home   id040262007900

Outline

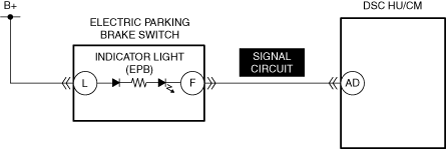

System malfunction location	Electric parking brake switch indicator light
Detection condition	•  The DSC HU/CM detects an excessive temperature increase in the drive circuit of the electric parking brake switch indicator light.
Fail-safe	Refer to “DTC Table” and “Fail-safe Function Malfunction Contents Table”.(See DTC TABLE [DSC HU/CM (E)].)
Possible cause	•  Electric parking brake switch connector or terminal malfunction •  Electric parking brake switch malfunction ―  Electric parking brake switch indicator light malfunction •  DSC HU/CM connector or terminals malfunction •  Short to power supply in electric parking brake switch indicator light signal circuit •  DSC HU/CM malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	INSPECT ELECTRIC PARKING BRAKE SWITCH CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	INSPECT ELECTRIC PARKING BRAKE SWITCH FOR MALFUNCTION •  Inspect the applicable part. (See ELECTRIC PARKING BRAKE SWITCH INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
3	INSPECT DSC HU/CM CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT ELECTRIC PARKING BRAKE SWITCH INDICATOR LIGHT SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform the DTC inspection for the DSC HU/CM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the DSC HU/CM, then go to the next step. (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (E)].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
