BRAKE PEDAL INSPECTION [(E)]

BRAKE PEDAL INSPECTION [(E)]

 id041100801199


Pedal Height Inspection

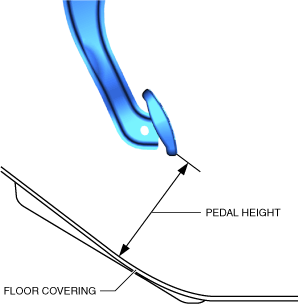

1.  Measure the distance from the floor covering to the position (pedal pad lower end and center) shown in the figure of the upper surface of the pedal pad and verify that it is as specified.

am3zzw00022443

•  If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.
―  Power brake unit installation condition
―  Deformation of or damage to the power brake unit fork
―  Brake pedal installation condition
―  Clevis pin wear
Brake pedal height (reference value) (Except Chinese specs.)
108.6 mm {4.276 in}
Brake pedal height (reference value) (Chinese specs.)
108.0 mm {4.252 in}
•  If there is no malfunction in the above items, replace the brake pedal. (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)(See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D. (E)].)


Pedal Play Inspection

1.  Pump the pedal several times to release the vacuum in the power brake unit.

2.  Gently depress the pedal by hand and measure the pedal play.

Brake pedal play
Without Mazda M Hybrid: 5 mm {0.2 in} or less
With Mazda M Hybrid: 3 mm {0.1 in} or less
•  If not within the specification, inspect the wear of the clevis pin. Replace it if there is any malfunction. (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)(See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D. (E)].)
―  If there is no malfunction in the clevis pin, there is a possibility that the power brake unit has some malfunction. Verify that there are no malfunctions, and replace it if necessary. (See POWER BRAKE UNIT INSPECTION [(E)].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D. (E)].)


Pedal-to-floor Clearance Inspection

1.  Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.

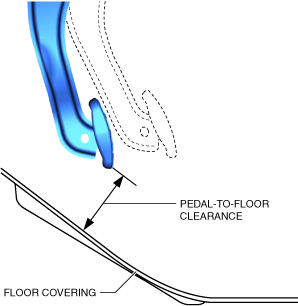

2.  Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

am3zzw00022444

Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf}) (Except Chinese specs.)
Without Mazda M Hybrid: 62.3 mm {2.45 in}
With Mazda M Hybrid: 65.6 mm {2.58 in}
Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf}) (Chinese specs.)
Without Mazda M Hybrid: 61.6 mm {2.43 in}
With Mazda M Hybrid: 65.1 mm {2.56 in}

Without Mazda M Hybrid

•  If it is less than the specification, inspect for air in the brake line. (See BRAKE FLUID AIR BLEEDING [(E)].)


WithMazda M Hybrid

•  If it is less than the standard, perform the Self-Diagnosing Brake Line using the M-MDS.

1.  Switch the ignition ON (engine off).

2.  Connect the M-MDS.

3.  Select the following item from the screen of the M-MDS.

(1)  Select “Self-Diagnosing Brake Line”.
•  If there is any malfunction, inspect for brake fluid leakage and then bleed the air using the M-MDS. (See BRAKE FLUID AIR BLEEDING [(E)].)
