MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.]

Home  id041100801352

Replacement Part

Oil and Chemical Type

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Note

•  Tighten the brake pipe flare nut using any commercially available flare nut wrench.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  For SKYACTIV-G 2.0 or SKYACTIV-G 2.5, perform the following procedure:

(1)  Remove the cooler hose (LO) installation bolt. (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

ac30zw00003445

(2)  Detach the cooler pipe from the clip.

3.  For SKYACTIV-D 1.8, perform the following procedure:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(4)  Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(5)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION [(E)].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING [(E)].) (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING [C66M-R, C66MX-R] (MTX).)

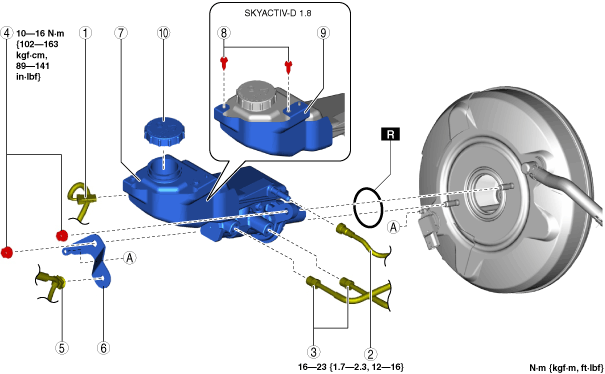

ac30zw00003446

1	Brake fluid level sensor connector
2	Clutch reserve hose (MTX) (See Clutch Reserve Hose Removal Note (MTX).) (See Clutch Reserve Hose Installation Note (MTX).)
3	Brake pipe
4	Nut
5	Wiring harness (vehicles with i-stop)
6	Bracket (vehicles with i-stop)
7	Master cylinder component
8	Screw (SKYACTIV-D 1.8)
9	Insulator (SKYACTIV-D 1.8)
10	Cap

Clutch Reserve Hose Removal Note (MTX)

1.  Disconnect the clutch reserve hose in the order shown in the figure.

ac30zw00000117

Clutch Reserve Hose Installation Note (MTX)

1.  Insert the clutch reserve hose into the master cylinder.

2.  Pull the clutch reserve hose to verify that it does not come off, and reinsert it completely.
