REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

id0711008030l7

Replacement Part

O-ring (cooler hose (HI))

Quantity: 2

Location of use: Cooler hose (HI)

O-ring (cooler hose (LO))

Quantity: 2

Location of use: Cooler hose (LO)

O-ring (cooler pipe)

Quantity: 2

Location of use: Cooler pipe

L.H.D.

Cooler hose (HI)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Disconnect the connector.

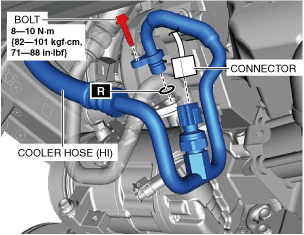

am3zzw00032019

5. Remove the bolt. (See Refrigerant line removal note.)

6. Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution

• If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

7. Remove the bolt. (See Refrigerant line removal note.)

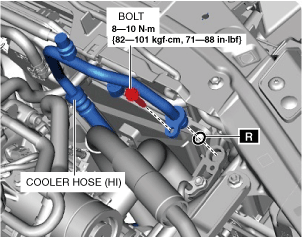

am3zzw00032020

8. Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution

9. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

10. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Cooler hose (LO)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Remove the rear wall. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

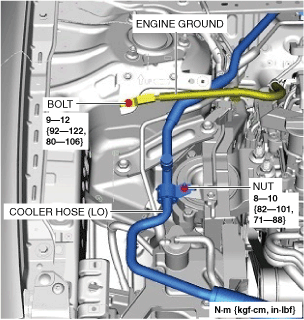

5. Remove the bolt.

am3zzw00032021

6. Disconnect the engine ground.

7. Remove the nut.

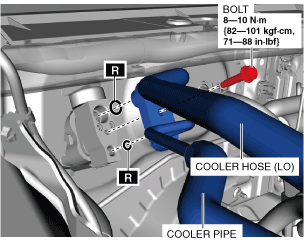

8. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032022

9. Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

10. Remove the bolt. (See Refrigerant line removal note.)

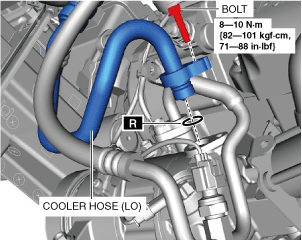

am3zzw00032023

11. Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution

12. Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac30zw00001880

13. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

14. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Cooler pipe

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the following parts:

(1) Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(2) Rear wall (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(3) Right wall (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Remove the bolt.

am3zzw00032021

5. Disconnect the engine ground.

6. Remove the nut.

7. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032022

8. Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

9. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

10. Disconnect the refrigerant pressure sensor connector.

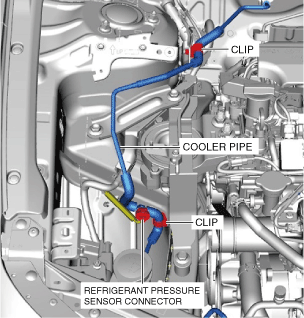

am3zzw00032025

11. Remove the clips.

12. Remove the bolt. (See Refrigerant line removal note.)

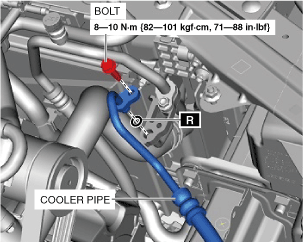

am3zzw00032026

13. Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution

14. Remove the cooler pipe. Do not allow compressor oil to spill.

ac30zw00001881

15. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

16. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Refrigerant line removal note

Caution

• When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

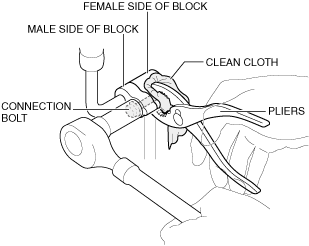

1. Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

am3zzw00028202

Refrigerant line installation note (1)

1. Apply compressor oil to the O-rings and connect the joints.

2. Tighten the joint bolt by hand.

Caution

• When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3. Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

am3zzw00028202

Refrigerant line installation note (2)

1. After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line

Supplemental compressor oil amount (approx. quantity)

Cooler Hose (HI)

2 ml {2 cc, 0.07 US fl oz}

Cooler Hose (LO)

3 ml {3 cc, 0.1 US fl oz}

Cooler Pipe

1 ml {1 cc, 0.03 US fl oz}

Replaced refrigerant line	Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)	2 ml {2 cc, 0.07 US fl oz}
Cooler Hose (LO)	3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe	1 ml {1 cc, 0.03 US fl oz}

R.H.D.

Cooler hose (HI)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Disconnect the connector.

am3zzw00032019

5. Remove the bolt. (See Refrigerant line removal note.)

6. Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution

7. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032020

8. Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution

9. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

10. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Cooler hose (LO)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Remove the rear wall. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5. Remove the bolt.

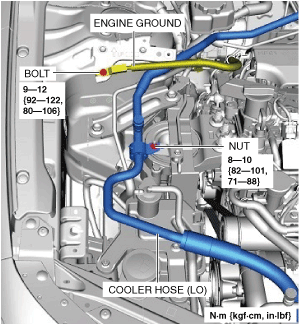

am3zzw00032028

6. Disconnect the engine ground.

7. Remove the nut.

8. Remove the bolt. (See Refrigerant line removal note.)

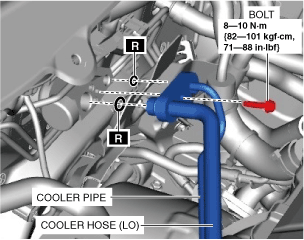

am3zzw00032029

9. Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

10. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032023

11. Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution

12. Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac30zw00001882

13. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

14. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Cooler pipe

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING [(E)].)

3. Remove the following parts:

(1) Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(2) Rear wall (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

(3) Right wall (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4. Remove the bolt.

am3zzw00032028

5. Disconnect the engine ground.

6. Remove the nut.

7. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032029

8. Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

9. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

10. Disconnect the refrigerant pressure sensor connector.

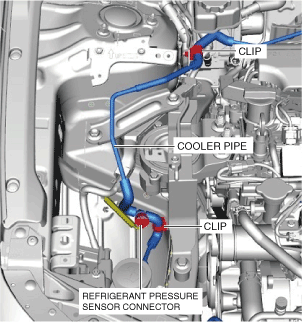

am3zzw00032031

11. Remove the clips.

12. Remove the bolt. (See Refrigerant line removal note.)

am3zzw00032026

13. Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution

14. Remove the cooler pipe. Do not allow compressor oil to spill.

ac30zw00001883

15. Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

16. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST [(E)].)

Refrigerant line removal note

Caution

• When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1. Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

am3zzw00028202

Refrigerant line installation note (1)

1. Apply compressor oil to the O-rings and connect the joints.

2. Tighten the joint bolt by hand.

Caution

• When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3. Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

am3zzw00028202

Refrigerant line installation note (2)

1. After replacing the refrigerant line, add compressor oil to the refrigeration cycle.
