DTC B1086:87 [DASH-ELECTRICAL SUPPLY UNIT (E)]

id0702k80029ka

Outline

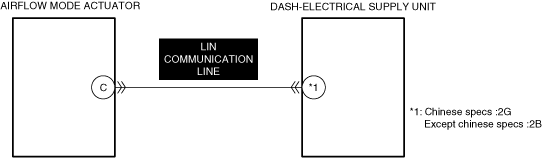

System malfunction location

Communication error with airflow mode actuator

Detection condition

•  The dash-electrical supply unit cannot receive the signals from the airflow mode actuator.

Fail-safe

•  Airflow mode actuator drive signal is stopped right when the malfunction is determined.

Possible cause

•  Dash-electrical supply unit power supply circuit malfunction

•  Airflow mode actuator connector or terminal malfunction

•  Dash-electrical supply unit connector or terminal malfunction

•  Short to ground in airflow mode actuator LIN communication line

•  Short to power supply in airflow mode actuator LIN communication line

•  Open circuit in airflow mode actuator LIN communication line

•  Airflow mode actuator malfunction

•  Dash-electrical supply unit malfunction

System malfunction location	Communication error with airflow mode actuator
Detection condition	• The dash-electrical supply unit cannot receive the signals from the airflow mode actuator.
Fail-safe	• Airflow mode actuator drive signal is stopped right when the malfunction is determined.
Possible cause	• Dash-electrical supply unit power supply circuit malfunction • Airflow mode actuator connector or terminal malfunction • Dash-electrical supply unit connector or terminal malfunction • Short to ground in airflow mode actuator LIN communication line • Short to power supply in airflow mode actuator LIN communication line • Open circuit in airflow mode actuator LIN communication line • Airflow mode actuator malfunction • Dash-electrical supply unit malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT FOR OTHER RELATED DTCs

•  Perform the DTC inspection for the dash-electrical supply unit.
(See DTC INSPECTION.)

•  Are any of the following DTCs displayed?

―  U3003:16

―  U3003:17

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [DASH-ELECTRICAL SUPPLY UNIT (E)].)

No

Go to the next step.

2

INSPECT AIRFLOW MODE ACTUATOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT DASH-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT AIRFLOW MODE ACTUATOR FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the dash-electrical supply unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.

(See AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (E)].)

(See AIRFLOW MODE ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(See AIRFLOW MODE ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].)

(See AIRFLOW MODE ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the dash-electrical supply unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the dash-electrical supply unit, then go to the next step.
(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT FOR OTHER RELATED DTCs • Perform the DTC inspection for the dash-electrical supply unit. (See DTC INSPECTION.) • Are any of the following DTCs displayed? ― U3003:16 ― U3003:17	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [DASH-ELECTRICAL SUPPLY UNIT (E)].)
1		No	Go to the next step.
2	INSPECT AIRFLOW MODE ACTUATOR CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT DASH-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT AIRFLOW MODE ACTUATOR LIN COMMUNICATION LINE FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT AIRFLOW MODE ACTUATOR FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the dash-electrical supply unit. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification. (See AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].)
7		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the dash-electrical supply unit. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the dash-electrical supply unit, then go to the next step. (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].) (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
