AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (E)]

id0740a28088y4

Warning

• Service the area around the heater core pipe when the engine is cold. If the heater core pipe is touched when the engine is hot, it may cause severe burns.

L.H.D.

1. Set the airflow mode to HEAT.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(7) Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

4. Disconnect the connector.

am3zzw00028305

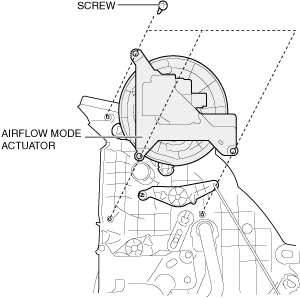

5. Detach the clip.

6. Remove the screws.

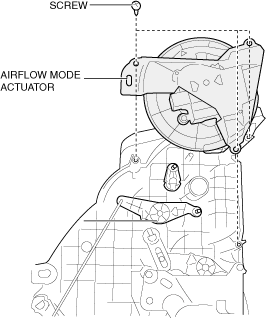

am3zzw00021385

7. Remove the airflow mode actuator.

8. Remove the airflow mode main link.

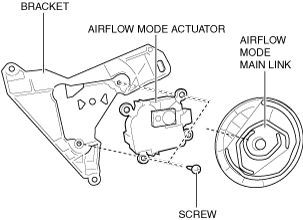

am3zzw00021386

9. Remove the screws.

10. Remove the bracket.

R.H.D.
