DTC B1176:11 [BODY CONTROL MODULE (BCM) (E)]

id0902r70890s3

Outline

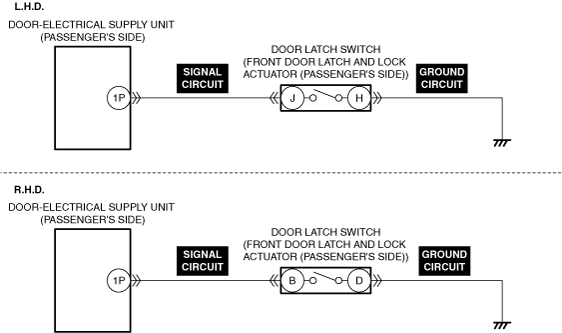

System malfunction location

Front door latch switch (passenger’s side) circuit malfunction

Detection condition

•  The door-electrical supply unit (passenger’s side) detects a short to ground in the front door latch switch (passenger’s side) circuit for a continuous 2 times.

Preconditions

•  The front door (passenger’s side) closed (front door latch switch (passenger’s side) off).

Fail-safe

Not applicable

Possible cause

•  Front door latch and lock actuator (passenger’s side) connector or terminal malfunction

•  Front door latch switch (passenger’s side) malfunction

•  Door-electrical supply unit (passenger’s side) connector or terminal malfunction

•  Short to ground in front door latch switch (passenger’s side) signal circuit

•  Door-electrical supply unit (passenger’s side) malfunction

•  Body control module (BCM) malfunction

System malfunction location	Front door latch switch (passenger’s side) circuit malfunction
Detection condition	• The door-electrical supply unit (passenger’s side) detects a short to ground in the front door latch switch (passenger’s side) circuit for a continuous 2 times. Preconditions • The front door (passenger’s side) closed (front door latch switch (passenger’s side) off).
Fail-safe	Not applicable
Possible cause	• Front door latch and lock actuator (passenger’s side) connector or terminal malfunction • Front door latch switch (passenger’s side) malfunction • Door-electrical supply unit (passenger’s side) connector or terminal malfunction • Short to ground in front door latch switch (passenger’s side) signal circuit • Door-electrical supply unit (passenger’s side) malfunction • Body control module (BCM) malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

INSPECT FRONT DOOR LATCH SWITCH (PASSENGER’S SIDE) FOR MALFUNCTION

•  Inspect the applicable part.
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3

INSPECT DOOR-ELECTRICAL SUPPLY UNIT (PASSENGER’S SIDE) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT FRONT DOOR LATCH SWITCH (PASSENGER’S SIDE) SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT DOOR-ELECTRICAL SUPPLY UNIT (PASSENGER’S SIDE) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM) with the front door (passenger’s side) closed.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.

(See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM) with the front door (passenger’s side) closed.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
