CUP HOLDER REMOVAL/INSTALLATION

id091700969100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(2)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

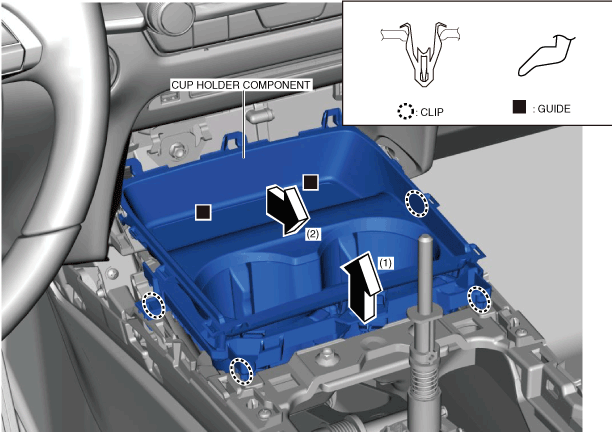

3.  Move the cup holder in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guides.

ac30zw00002930

4.  Install in the reverse order of removal.
