DC-DC CONVERTER (Mazda M Hybrid) REMOVAL/INSTALLATION
id144200001100
1. Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)
2. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
3. Set the front mudguard (LH) aside as shown in the figure. (See MUDGUARD REMOVAL/INSTALLATION.)
am3zzw00031050
|
4. Disconnect the wiring harness shown in the figure.
am3zzw00031051
|

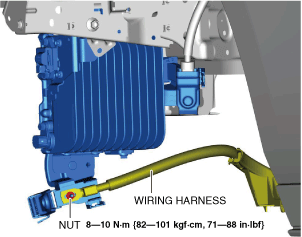

5. Disconnect the wiring harness shown in the figure.
am3zzw00031052
|

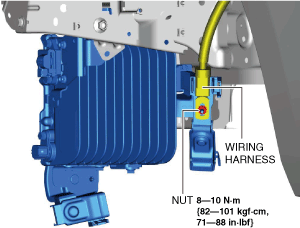

6. Disconnect the wiring harness shown in the figure. (with seat warmer system)
am3zzw00031053
|

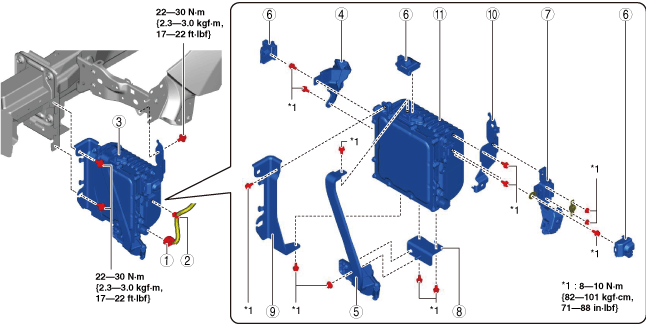

7. Remove in the order shown in the figure.
8. Install in the reverse order of removal.
aaxjjw00023651
|
|
1
|
Connector
|
|
2
|
Wiring harness clip
|
|
3
|
DC-DC converter (Mazda M Hybrid) component
|
|
4
|
Bus bar No.1
|
|
5
|
Bus bar No.2
|
|
6
|
Cover
|
|
7
|
Fuse box (with seat warmer system)
|
|
8
|
Bracket No.1
|
|
9
|
Bracket No.2
|
|
10
|
Bracket No.3
|
|
11
|
DC-DC converter (Mazda M Hybrid)
|
Bracket No.2 Installation Note
1. Tighten the bolts in the order shown in the figure.
aaxjjw00023643
|
Bus Bar No.2 Installation Note
1. Temporarily tighten the bolt.
am3zzw00031054
|

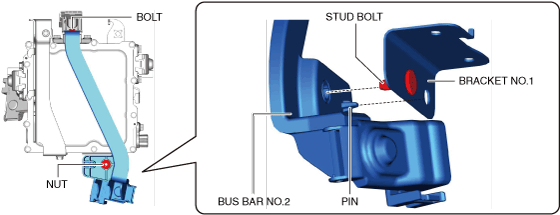

2. Insert the bus bar No.2 pin into bracket No.1, and the bracket No.1 stud bolt into bus bar No.2.
3. Tighten the bolt.
4. Tighten the nut.
DC-DC Converter (Mazda M Hybrid) Component Installation Note

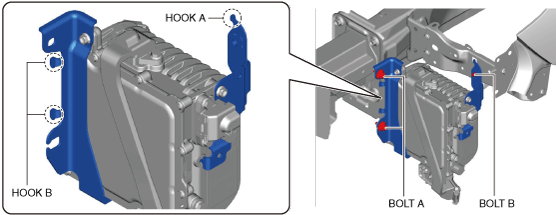

1. Install the hooks to the body in the order of hooks A and B.
ac30zw00005304
|
2. Temporarily tighten bolts A.
3. Tighten bolt B.
4. Tighten bolts A.
