 FRONT STABILIZER REMOVAL/INSTALLATION

FRONT STABILIZER REMOVAL/INSTALLATION


id021300800400

1. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Adjust the headlight zeroset.

(See HEADLIGHT ZEROSET.)

5. Inspect the front wheel alignment.

(See FRONT WHEEL ALIGNMENT.)

.

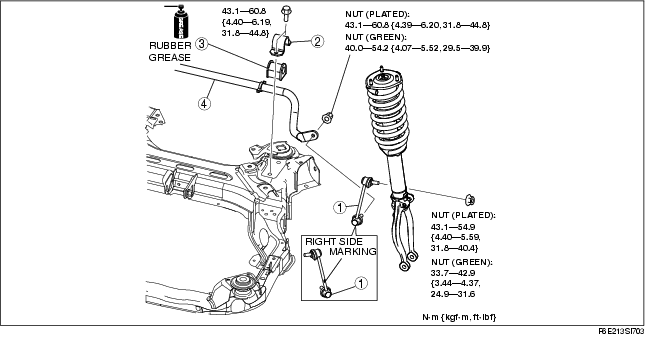

1
Stabilizer control link
2
Stabilizer bracket
3
Stabilizer bushing
4
Front stabilizer

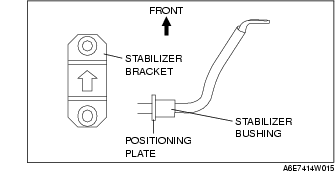

Stabilizer Bracket Installation Note

1. Apply rubber grease to the inside surface of the stabilizer bushing.

2. Align the bushing with the inside of positioning plate on the stabilizer bar.

3. Install the stabilizer bracket.
