DTC P250A:00 [PCM (SKYACTIV-D)]
id0102t5787200
Details On DTCs
Description |
Engine oil level sensor: Function malfunction |
|
---|---|---|
Detection condition
|
Determination condition
|
• PCM receives abnormal signal from the engine oil level sensor.
|
Preconditions
|
• Battery positive voltage: 10—16 V
• The following DTCs are not detected
• Low-G sensor signal is normal
|
|
Drive cycle
|
• 1
|
|
Self-test type
|
• CMDTC self test
|
|
Sensor/unit used
|
• Engine oil level sensor
• Engine oil temperature sensor
• Low-G sensor
|
|
Fail-safe
|
• Not applicable
|
|
Vehicle status when DTCs are output
|
• Master warning light is turned on
|
|
Possible cause
|
• Excessive engine oil level (oil level exceeds measurable upper limit range of engine oil level sensor)
• Engine oil level sensor malfunction
• Signal error to PCM
• PCM malfunction
|
|
![]() |
||
![]() |
||
![]() |
![]() |
Function Explanation (DTC Detection Outline)
Repeatability Verification Procedure
PID Item/Simulation Item Used in Diagnosis
PID
Item name |
Reference |
---|---|
ENG_OIL_LVL
|
|
ENG_OIL_TEMP_BLOCK
|
Function Inspection Using M-MDS
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
• Verify related Service Bulletins, on-line repair information, or Service Information availability.
• Is any related Information available?
|
Yes
|
Perform repair or diagnosis according to the available information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
2
|
PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA
• Is DTC P250A:00 causing the freeze frame data?
|
Yes
|
Go to the next step.
|
No
|
Go to the troubleshooting procedure for DTC on freeze frame data.
(See DTC TABLE [PCM (SKYACTIV-D)].)
|
||
3
|
PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the freeze frame data/snapshot data.
|
—
|
Go to the next step.
|
4
|
PURPOSE: VERIFY OTHER RELATED DTCs
• Perform the DTC inspection for the PCM.
(See DTC INSPECTION)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See DTC TABLE [PCM (SKYACTIV-D)].)
|
No
|
Go to the next step.
|
||
5
|
PURPOSE: DETERMINE IF CAUSE IS ERROR SIGNAL FROM ENGINE OIL LEVEL SENSOR
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Access the following PIDs using the M-MDS:
(See PID/DATA MONITOR INSPECTION.)
PCM:
• Start the engine and warm up until the value of PID ENG_OIL_TEMP_BLOCK is 60 °C {140 °F} or more.
• After engine warm-up, perform the DTC inspection for the PCM.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
No
|
Go to the next step.
|
||
6
|
PURPOSE: VERIFY ACTUAL ENGINE OIL LEVEL
• Switch the ignition ON (engine off) and leave for 5 min.
• Pull out the dipstick.
• Verify if the engine oil level is 8 mm {0.3 in} or more from the upper limit position of the dipstick.
• Is it 8 mm {0.3 in} or more?
|
Yes
|
Go to Step 8.
|
No
|
Go to the next step.
|
||
7
|
PURPOSE: VERIFY IF CAUSE IS ENGINE OIL LEVEL SENSOR STICKING MALFUNCTION
• Access the following PIDs using the M-MDS:
(See PID/DATA MONITOR INSPECTION.)
PCM:
• Start the engine while verifying the monitor value with the ignition switched ON (engine off).
• Leave for 30 s or more.
• Does the monitor value decrease by 7 mm {0.3 in} or more compared to the value with the ignition switched ON (engine off)?
|
Yes
|
A temporary malfunction can be considered.
• Perform the [Action for Non-repeatable Malfunction].
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
||
8
|
PURPOSE: VERIFY IF CAUSE IS EXCESSIVE ENGINE OIL LEVEL
• Switch the ignition ON (engine off).
• Access the following PIDs using the M-MDS:
(See PID/DATA MONITOR INSPECTION.)
PCM:
• Verify the monitor value with the ignition switched ON (engine off).
• Is the monitor value 95.8 mm {3.77 in} or more?
|
Yes
|
Adjust the engine oil level near the middle of the upper and lower limit position on the dipstick.
Go to the next step.
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
||
9
|
PURPOSE: VERIFY IF CAUSE IS ENGINE OIL LEVEL SENSOR STICKING MALFUNCTION
• Access the following PIDs using the M-MDS:
(See PID/DATA MONITOR INSPECTION.)
PCM:
• Start the engine while verifying the monitor value with the ignition switched ON (engine off).
• Leave for 30 s or more.
• Does the monitor value decrease by 7 mm {0.3 in} or more compared to the value with the ignition switched ON (engine off)?
|
Yes
|
The cause is an excessive engine oil amount exceeding the measurable range of the engine oil level sensor. Replace the engine oil because there is the possibility that the engine oil is diluted.
Go to Troubleshooting Diagnostic Procedure to perform the repair completion verification.
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
Troubleshooting Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
PURPOSE: INSPECT ENGINE OIL LEVEL SENSOR CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
2
|

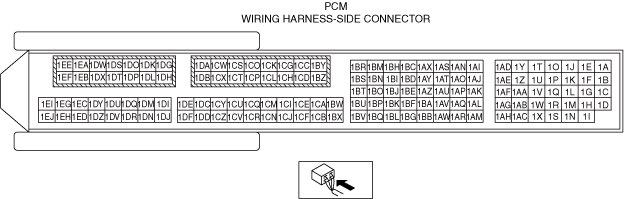

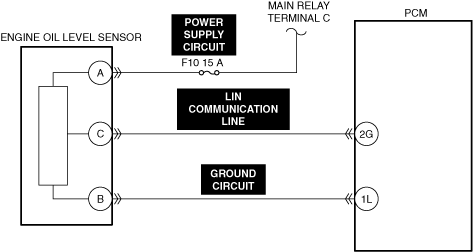

PURPOSE: INSPECT ENGINE OIL LEVEL SENSOR LIN COMMUNICATION LINE FOR SHORT TO GROUND
• Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
3
|
PURPOSE: INSPECT ENGINE OIL LEVEL SENSOR LIN COMMUNICATION LINE FOR OPEN CIRCUIT
• Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Replace the engine oil level sensor, then perform the repair completion verification.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
Repair completion verification 1
|
PURPOSE: VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
• Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
Repair completion verification 2
|
PURPOSE: VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
