COOLANT SWITCHING VALVE (CSV) REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0112hf225100

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

•  If the cooling system cap or the water-cooled charge air cooler reserve tank cap is removed when the engine is hot, steam and boiling water may be injected, causing severe burns or severe injury. Perform the removal of the cooling system cap and water-cooled charge air cooler reserve tank cap when the engine is cool.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

3.  Remove the rear wall. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4.  Remove the No.3 engine mount. (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)

5.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

6.  Disconnect the A/F sensor wiring harness clip.

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].)

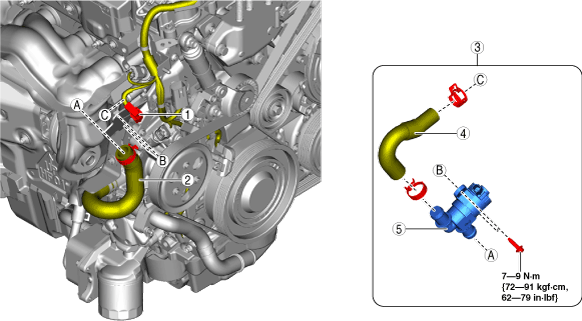

ac30zw00003118

1	Coolant switching valve connector
2	Water hose
3	Coolant switching valve component
4	Water hose
5	Coolant switching valve
