INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0114q9850200

Replacement Part

Warning

•  Fuel is highly flammable and dangerous. Fuel line spills and leakage can cause serious injury or death, and damage to equipment. If fuel comes into contact with the skin and eyes it will cause irritation. To prevent this, always perform the “Fuel Line Safety Procedure” referring to the “BEFORE REPAIR PROCEDURE”.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before servicing the fuel system, make sure to discharge static electricity by touching a vehicle.

Caution

•  If parts are exposed to the fuel, their function may be decreased or a fire may occur. Spread a rag to absorb any leaked fuel.

•  Do not let foreign matter get into the injection pipe to prevent clogging. In addition, always tighten the injection pipe to the specified torque.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 1.8].)

4.  Disconnect the CMP sensor connector. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

5.  Disconnect the fuel injector connector. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

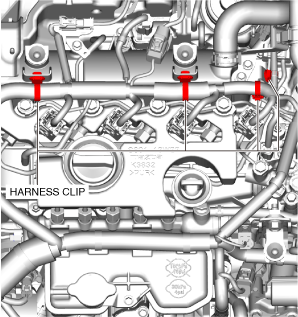

6.  Disconnect the wiring harness clips shown in the figure.

ac3wzw00004741

7.  Disconnect the exhaust gas temperature sensor No.1 connector. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

8.  Disconnect the exhaust gas temperature sensor No.1 connector clip. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

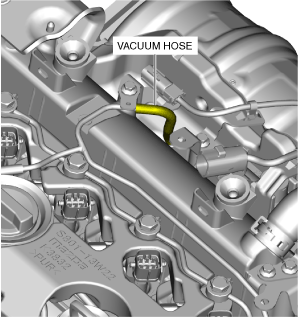

9.  Disconnect the vacuum hose shown in the figure. (See TURBOCHARGER SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

ac3wzw00004742

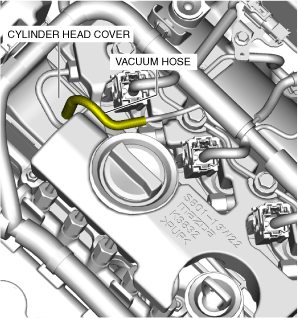

10.  Disconnect the vacuum hose connected to the cylinder head cover.

ac3wzw00004743

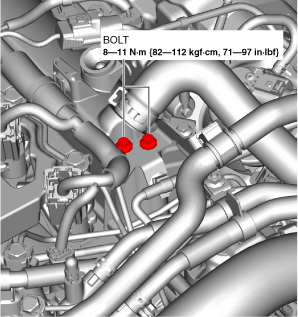

11.  Remove the bolts shown in the figure.

ac3wzw00004744

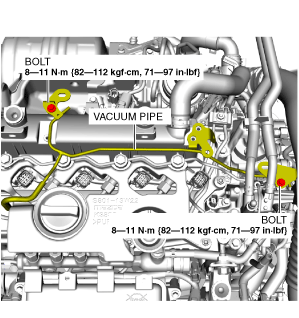

12.  Remove the vacuum pipe installation bolt and set the vacuum pipe aside so that it does not interfere with the servicing.

ac3wzw00004745

13.  Remove the fuel return pipe. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

14.  Remove the fuel injector insulator. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

15.  Remove the EGR pipe. (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

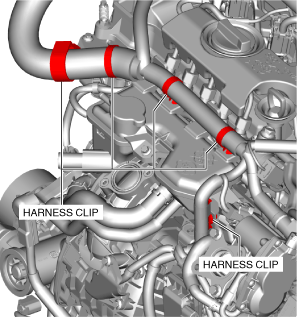

16.  Disconnect the wiring harness clip shown in the figure.

ac3wzw00004746

17.  Set the water-cooled charge air cooler reserve tank aside so that it does not interfere with the servicing. (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

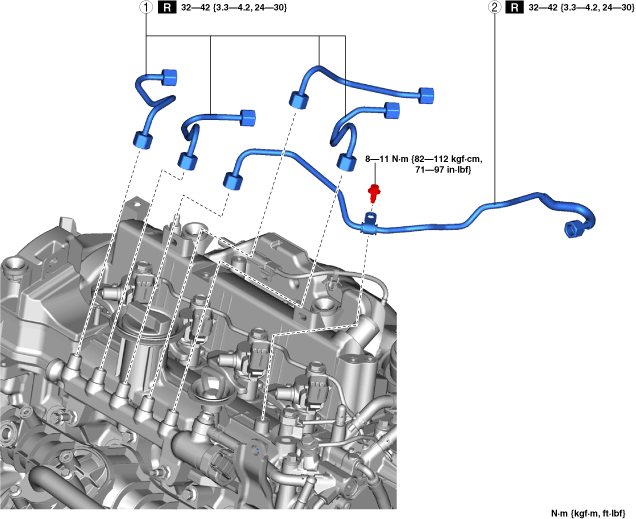

18.  Remove in the order shown in the figure.

19.  Install in the reverse order of removal.

20.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-D 1.8].)

ac3wzw00004747

1	Injection pipe (fuel injector side) (See Injection Pipe Installation Note.)
2	Injection pipe (supply pump side) (See Injection Pipe (Supply Pump Side) Removal Note.) (See Injection Pipe Installation Note.)

Injection Pipe (Supply Pump Side) Removal Note

1.  Remove the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

2.  Remove the injection pipe (supply pump side).

Injection Pipe Installation Note

1.  Remove the fuel injector bracket. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

2.  Remove the fuel return pipe. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Loosen the common rail.

4.  Tighten the bolts shown in the figure to the specified torque.

Caution

•  The bolts shown in the figure may loosen when removing the fuel injector bracket because the nuts assembled to the bolts are removed. Tighten the bolts shown in the figure to the specified torque before installing the fuel injector bracket.

am3zzw00032168

5.  Temporarily install the fuel injector bracket.

6.  Temporarily tighten the common rail installation nut.

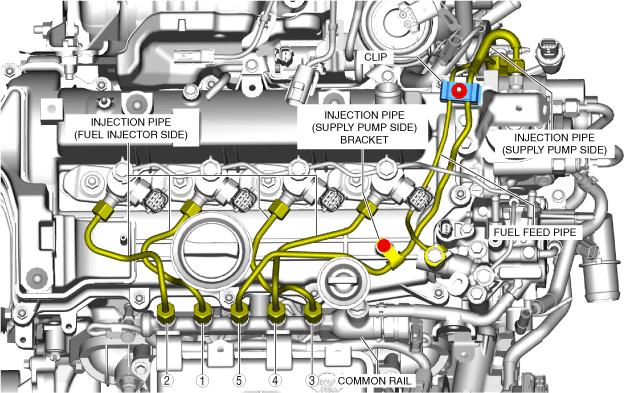

7.  Temporarily tighten both ends of the new injection pipe (fuel injector side) and injection pipe (supply pump side) in the order shown in the figure.

ac3wzw00004749

8.  Tighten the fuel injector bracket installation nuts in two steps. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

9.  Temporarily tighten the fuel feed pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

10.  Tighten the clip. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

11.  Tighten the injection pipe (supply pump side) bracket installation bolts.

12.  Tighten both ends of the injection pipe (fuel injector side).

13.  Tighten both ends of the injection pipe (supply pump side).

14.  Tighten the common rail. (See COMMON RAIL REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

15.  Tighten the fuel feed pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

16.  Install the Fuel injector insulator.

17.  Tighten the fuel return pipe. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

18.  Install the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
