TRANSFER REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)]

Home  id0316j18006j6

Replacement Part

Caution

•  Performing the following procedures could cause an open circuit in the front ABS wheel speed-sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the ground plate. (See GROUND PLATE DISCONNECTION/CONNECTION.)

5.  Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

6.  Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

7.  Remove the bracket. (SeeBracket Installation Note.)

am3zzw00032208

8.  Remove the heat shield.

am3zzw00032209

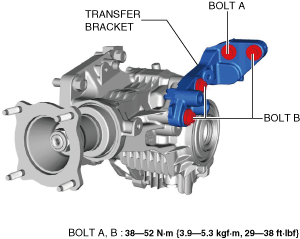

9.  Remove the transfer bracket. (See Transfer Bracket Installation Note.)

am3zzw00032210

10.  Drain the transfer oil. (See TRANSFER OIL REPLACEMENT [ET6AX-EL (E)].)

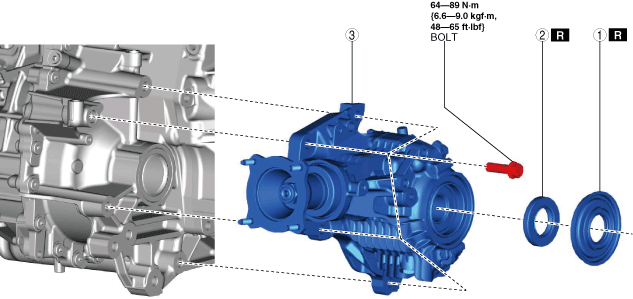

11.  Remove in the order shown in the figure.

12.  Install in the reverse order of removal.

13.  After the engine and transaxle warms up, inspect for oil leakage and transfer operation.

am3zzw00032211

1	Transfer oil seal (RH) No.1 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL].)
2	Transfer oil seal (RH) No.3 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL].)
3	Transfer

Transfer Bracket Installation Note

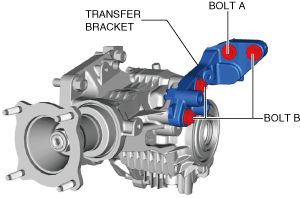

1.  Install the transfer bracket to the transfer and temporarily tighten bolts A and B.

am3zzw00032212

2.  Completely tighten the bolts in the order of A and B.

Bracket Installation Note

1.  Install the bracket to the catalytic converter (GPF) and temporarily tighten bolts A and B.

am3zzw00032213

2.  Completely tighten the bolts in the order of A and B.
