AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)]

Home  id0740a18001y2

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

•  Service the area around the heater core pipe when the engine is cold. If the heater core pipe is touched when the engine is hot, it may cause severe burns.

L.H.D.

Driver-side

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(6)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

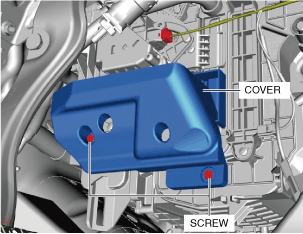

4.  Remove the screws.

am3zzw00021368

5.  Remove the cover.

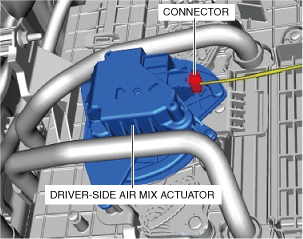

6.  Disconnect the connector.

am3zzw00021369

7.  Remove the screws.

am3zzw00021370

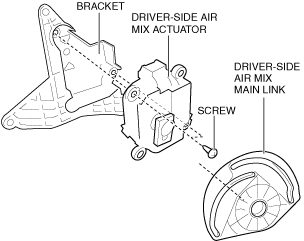

8.  Remove the driver-side air mix actuator.

9.  Remove the driver-side air mix main link.

am3zzw00021371

10.  Remove the screws.

11.  Remove the bracket.

Passenger-side

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

4.  Detach the clip.

am3zzw00021372

5.  Disconnect the connectors.

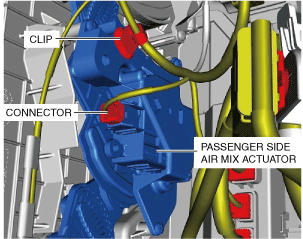

6.  Disconnect the connector.

am3zzw00021373

7.  Detach the clip.

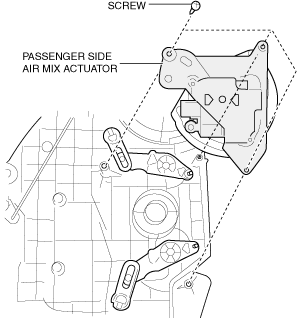

8.  Remove the screws.

am3zzw00021374

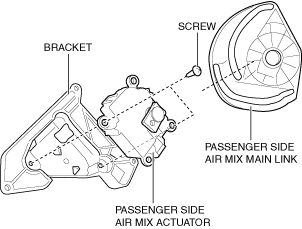

9.  Remove the passenger-side air mix actuator.

10.  Remove the passenger-side air mix main link.

am3zzw00021375

11.  Remove the screws.

12.  Remove the bracket.

R.H.D.

Driver-side

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Disconnect the connector.

am3zzw00028235

4.  Detach the clip.

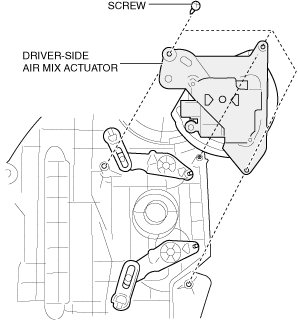

5.  Remove the screws.

am3zzw00028236

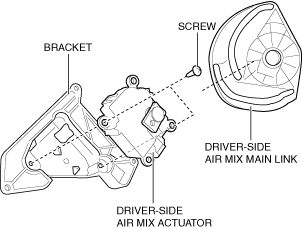

6.  Remove the driver-side air mix actuator.

7.  Remove the driver-side air mix main link.

am3zzw00028237

8.  Remove the screws.

9.  Remove the bracket.

Passenger-side

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

4.  Detach the clip.

am3zzw00028238

5.  Disconnect the connectors.

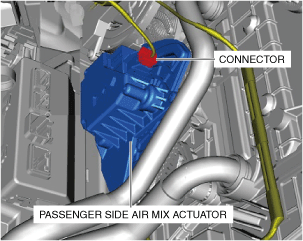

6.  Disconnect the connector.

am3zzw00028239

7.  Remove the screws.

am3zzw00028240

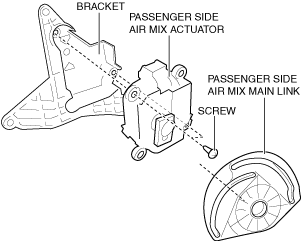

8.  Remove the passenger-side air mix actuator.

9.  Remove the passenger-side air mix main link.

am3zzw00028241

10.  Remove the screws.

11.  Remove the bracket.
