AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)]

id0740a18014y2

L.H.D. (Except Chinese Specs.)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

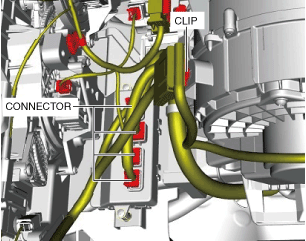

3. Detach the clip.

am3zzw00021376

4. Disconnect the connectors.

5. Disconnect the connector.

am3zzw00028242

6. Remove the screws.

7. Remove the air intake actuator.

8. Install in the reverse order of removal.

R.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

3. Detach the clip.

am3zzw00028243

4. Disconnect the connectors.

5. Disconnect the connector.

am3zzw00028245

6. Remove the screws.

7. Remove the air intake actuator.

8. Install in the reverse order of removal.

L.H.D. (Chinese Specs.)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

3. Detach the clips.

am3zzw00021376

4. Disconnect the connectors.

5. Disconnect the connector.

ac30zw00004075

6. Remove the screws.

7. Remove the air intake actuator.

8. Install in the reverse order of removal.
