AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)]

id0740a18203y2

L.H.D.

Driver-side

1. Install the air mix actuator to the bracket.

am3zzw00021394

2. Install the screws.

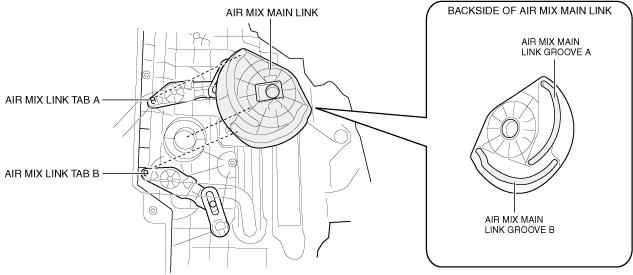

3. Align the following air mix link tabs with the air mix main link grooves and install the air mix main link.

― Air mix link tab A and air mix main link groove A

― Air mix link tab B and air mix main link groove B

am3zzw00028259

4. Move the air mix main link in the direction shown in the figure and verify that it rotates smoothly.

am3zzw00021396

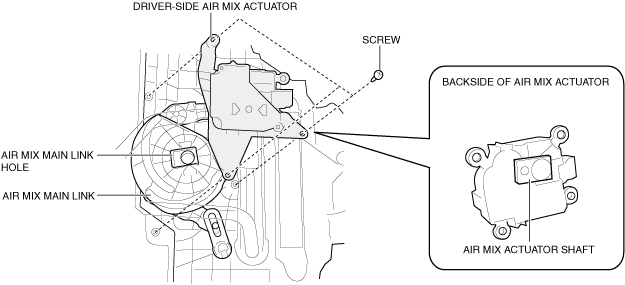

5. Align the air mix main link hole with the shape of the air mix actuator shaft, and install the air mix actuator.

Note

• The air mix main link is not secured, therefore hold it with your hand so that it does not detach.

am3zzw00021397

6. Install the screws.

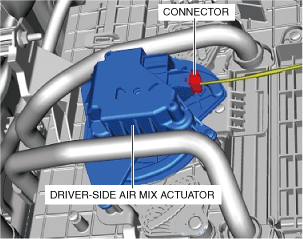

7. Connect the connector.

am3zzw00021398

8. Install the cover.

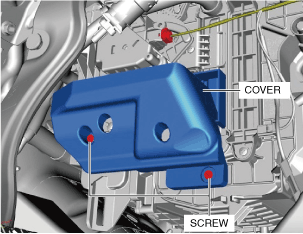

am3zzw00021399

9. Install the screws.

10. Install the following parts:

(1) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(2) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

11. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

Passenger-side

1. Install the air mix actuator to the bracket.

am3zzw00021400

2. Install the screws.

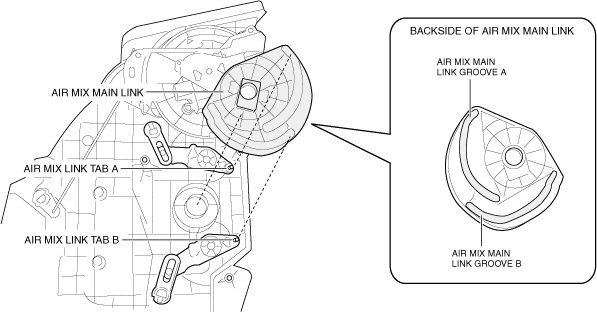

3. Align the following air mix link tabs with the air mix main link grooves and install the air mix main link.

― Air mix link tab A and air mix main link groove A

― Air mix link tab B and air mix main link groove B

am3zzw00028260

4. Move the air mix main link in the direction shown in the figure and verify that it rotates smoothly.

am3zzw00021402

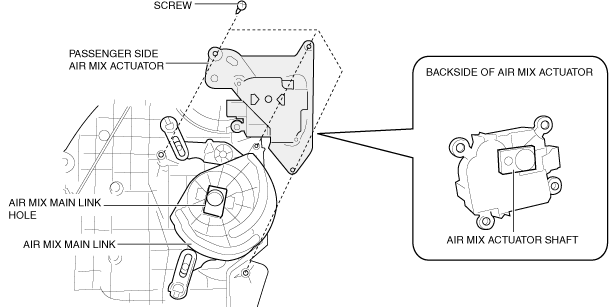

5. Align the air mix main link hole with the shape of the air mix actuator shaft, and install the air mix actuator.

Note

• The air mix main link is not secured, therefore hold it with your hand so that it does not detach.

am3zzw00021403

6. Install the screws.

7. Install the clip.

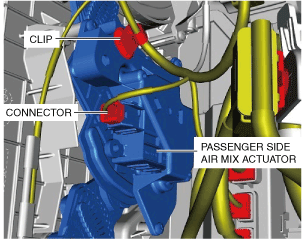

am3zzw00021404

8. Connect the connector.

9. Connect the connectors.

am3zzw00021405

10. Install the clip.

11. Install the following parts:

(1) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(2) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

12. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

R.H.D.

Driver-side

1. Install the air mix actuator to the bracket.

am3zzw00028261

2. Install the screws.

3. Align the following air mix link tabs with the air mix main link grooves and install the air mix main link.

― Air mix link tab A and air mix main link groove A

― Air mix link tab B and air mix main link groove B

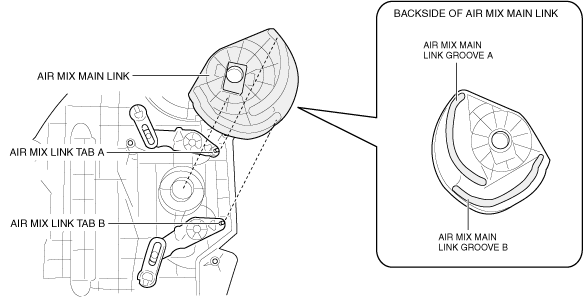

am3zzw00028262

4. Move the air mix main link in the direction shown in the figure and verify that it rotates smoothly.

am3zzw00028263

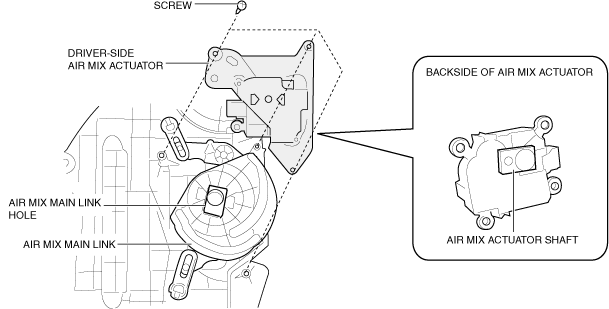

5. Align the air mix main link hole with the shape of the air mix actuator shaft, and install the air mix actuator.

Note

• The air mix main link is not secured, therefore hold it with your hand so that it does not detach.

am3zzw00028264

6. Install the screws.

7. Install the clip.

am3zzw00028265

8. Connect the connector.

9. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

Passenger-side

1. Install the air mix actuator to the bracket.

am3zzw00028266

2. Install the screws.

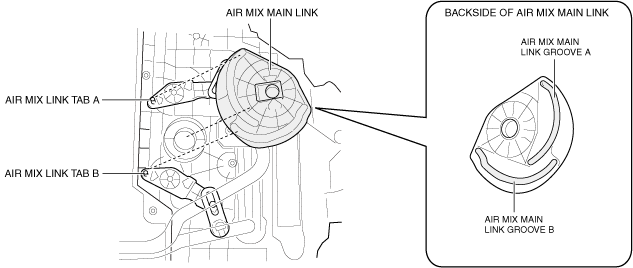

3. Align the following air mix link tabs with the air mix main link grooves and install the air mix main link.

― Air mix link tab A and air mix main link groove A

― Air mix link tab B and air mix main link groove B

am3zzw00028267

4. Move the air mix main link in the direction shown in the figure and verify that it rotates smoothly.

am3zzw00028268

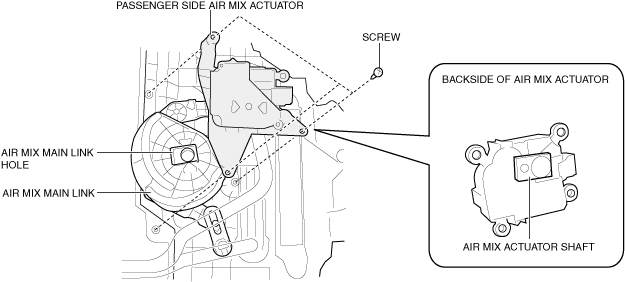

5. Align the air mix main link hole with the shape of the air mix actuator shaft, and install the air mix actuator.

Note

• The air mix main link is not secured, therefore hold it with your hand so that it does not detach.

am3zzw00028269

6. Install the screws.

7. Connect the connector.

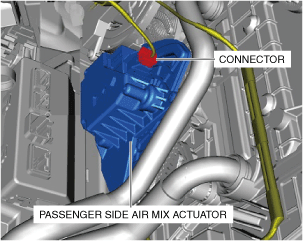

am3zzw00028270

8. Connect the connectors.

am3zzw00028271

9. Install the clip.

10. Install the following parts:

(1) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(2) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

11. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
