DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (E)]

id0740a18205y2

1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL DISASSEMBLY/ASSEMBLY [(E)].)

3. Connect the negative battery terminal.

4. Switch the ignition ON (engine off or on).

5. Connect the negative (-) lead of the tester to body ground.

6. Insert the positive (+) lead of the tester into each dash-electrical supply unit terminal and measure the voltage according to the terminal voltage table.

• If there is any malfunction, inspect the parts under “Inspection item (s)”.

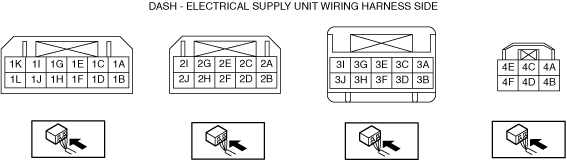

Terminal Voltage Table (Reference)

am3zzw00022955

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

1A

Foot light ^*1

Foot light control

Foot light on

1.0 or less

•  Related wiring harness

Foot light off

B+

1B

—

—

—

—

—

1C

—

—

—

—

—

1D

GND

Body ground

Under any condition

Approx. 0

•  GND point

•  Related wiring harness

1E

IG

F47 15 A fuse

Switch the ignition ON (engine off or on)

B+

•  Related wiring harness

•  F47 15 A fuse

Switch the ignition off

1.0 or less

1F

—

—

—

—

—

1G

+B

F16 15 A fuse

Under any condition

B+

•  Related wiring harness

•  F16 15 A fuse

1H

—

—

—

—

—

1I

HS_CAN_L

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

1J

HS_CAN_L

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

1K

HS_CAN_H

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

1L

HS_CAN_H

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

2A

LIN1

Rear vent actuator ^*2

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

2B

LIN1

•  Air mix actuator (Driver-side) (Passenger-side)

•  Airflow mode actuator

•  Air intake actuator

•  PTC Heater ^*3

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

2C

—

—

—

—

—

2D

—

—

—

—

—

2E

Evaporator temperature sensor input

Evaporator temperature sensor

Compared with temperature detected by evaporator temperature sensor

Refer to graph

•  Related wiring harness

2F

GND_HVAC_2

Rear vent actuator _*2

Under any condition

1.0 or less

•  Related wiring harness

2G

Sensor GND

Evaporator temperature sensor

Under any condition

1.0 or less

•  Related wiring harness

2H

GND_HVAC_1

•  Air mix actuator (Driver-side) (Passenger-side)

•  Airflow mode actuator

•  Air intake actuator

Under any condition

1.0 or less

•  Related wiring harness

2I

IG_HVAC_2

Rear vent actuator ^*2

Switch the ignition ON (engine off or on)

B+

•  Related wiring harness

Switch the ignition off

B+ / 1.0 or less ^*8

2J

IG_HVAC_1

•  Air mix actuator (Driver-side) (Passenger-side)

•  Airflow mode actuator

•  Air intake actuator

•  PTC heater ^*3

Switch the ignition ON (engine off or on)

B+

•  Related wiring harness

Switch the ignition off

B+ / 1.0 or less ^*8

3A

HS_CAN_H

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

3B

HS_CAN_L

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

3C

—

—

—

—

—

3D

—

—

—

—

—

3E

—

—

—

—

—

3F

—

—

—

—

—

3G^*9

Mode switch input ^*4

Drive selection switch

Ignition ON

Pressed to SPORT side (forward)

1.0 or less

•  Related wiring harness

Pressed to OFF side (backward)

8.0

Not pressed

9.0

3G^*10

Mode switch input ^*4

Drive selection switch

Ignition ON

Pressed to SPORT side (forward)

8.0

•  Related wiring harness

Pressed to OFF side (backward)

1.0 or less

Not pressed

9.0

3H

Buckle switch input

Driver-side buckle switch

Ignition ON

Driver-side front buckle fastened

B+

•  Related wiring harness

•  Driver-side front buckle

Driver-side front buckle unfastened

1.0 or less

3I

—

—

—

—

—

3J

LIN2

Seat warmer control unit ^*5/ Position memory control module ^*6 / Heated steering wheel control unit ^*7

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

•  Related wiring harness

4A

Motor operation (-)

Blower motor

Switch the ignition off

1.0 or less

•  Related wiring harness

•  Blower motor

Fan stopped (Switch the ignition ON (engine off or on))

B+

4B

—

—

—

—

—

4C

Blower motor GND

Body ground

Under any condition

Approx. 0

•  GND point

•  Related wiring harness

4D

—

—

—

—

—

4E

Motor operation (+)

Blower motor

Switch the ignition off

1.0 or less

•  Related wiring harness

•  Blower motor

Switch the ignition ON (engine off or on)

B+

4F

B+

Blower relay

Switch the ignition off

1.0 or less

•  Related wiring harness

Switch the ignition ON (engine off or on)

B+

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
1A	Foot light ^*1	Foot light control	Foot light on	1.0 or less	• Related wiring harness
Foot light off	B+
1B	—	—	—	—	—
1C	—	—	—	—	—
1D	GND	Body ground	Under any condition	Approx. 0	• GND point • Related wiring harness
1E	IG	F47 15 A fuse	Switch the ignition ON (engine off or on)	B+	• Related wiring harness • F47 15 A fuse
Switch the ignition off	1.0 or less
1F	—	—	—	—	—
1G	+B	F16 15 A fuse	Under any condition	B+	• Related wiring harness • F16 15 A fuse
1H	—	—	—	—	—
1I	HS_CAN_L	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
1J	HS_CAN_L	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
1K	HS_CAN_H	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
1L	HS_CAN_H	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
2A	LIN1	Rear vent actuator ^*2	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
2B	LIN1	• Air mix actuator (Driver-side) (Passenger-side) • Airflow mode actuator • Air intake actuator • PTC Heater ^*3	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
2C	—	—	—	—	—
2D	—	—	—	—	—
2E	Evaporator temperature sensor input	Evaporator temperature sensor	Compared with temperature detected by evaporator temperature sensor	Refer to graph	• Related wiring harness
2F	GND_HVAC_2	Rear vent actuator _*2	Under any condition	1.0 or less	• Related wiring harness
2G	Sensor GND	Evaporator temperature sensor	Under any condition	1.0 or less	• Related wiring harness
2H	GND_HVAC_1	• Air mix actuator (Driver-side) (Passenger-side) • Airflow mode actuator • Air intake actuator	Under any condition	1.0 or less	• Related wiring harness
2I	IG_HVAC_2	Rear vent actuator ^*2	Switch the ignition ON (engine off or on)	B+	• Related wiring harness
Switch the ignition off	B+ / 1.0 or less ^*8
2J	IG_HVAC_1	• Air mix actuator (Driver-side) (Passenger-side) • Airflow mode actuator • Air intake actuator • PTC heater ^*3	Switch the ignition ON (engine off or on)	B+	• Related wiring harness
Switch the ignition off	B+ / 1.0 or less ^*8
3A	HS_CAN_H	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
3B	HS_CAN_L	CAN related module	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
3C	—	—	—	—	—
3D	—	—	—	—	—
3E	—	—	—	—	—
3F	—	—	—	—	—
3G^*9	Mode switch input ^*4	Drive selection switch	Ignition ON	Pressed to SPORT side (forward)	1.0 or less	• Related wiring harness
Pressed to OFF side (backward)	8.0
Not pressed	9.0
3G^*10	Mode switch input ^*4	Drive selection switch	Ignition ON	Pressed to SPORT side (forward)	8.0	• Related wiring harness
Pressed to OFF side (backward)	1.0 or less
Not pressed	9.0
3H	Buckle switch input	Driver-side buckle switch	Ignition ON	Driver-side front buckle fastened	B+	• Related wiring harness • Driver-side front buckle
Driver-side front buckle unfastened	1.0 or less
3I	—	—	—	—	—
3J	LIN2	Seat warmer control unit ^5/ Position memory control module ^6 / Heated steering wheel control unit ^*7	Because this terminal is for communication, integrity determination by terminal voltage is not possible.	• Related wiring harness
4A	Motor operation (-)	Blower motor	Switch the ignition off	1.0 or less	• Related wiring harness • Blower motor
Fan stopped (Switch the ignition ON (engine off or on))	B+
4B	—	—	—	—	—
4C	Blower motor GND	Body ground	Under any condition	Approx. 0	• GND point • Related wiring harness
4D	—	—	—	—	—
4E	Motor operation (+)	Blower motor	Switch the ignition off	1.0 or less	• Related wiring harness • Blower motor
Switch the ignition ON (engine off or on)	B+
4F	B+	Blower relay	Switch the ignition off	1.0 or less	• Related wiring harness
Switch the ignition ON (engine off or on)	B+

*1 :With foot light

*2 :With rear vent actuator

*3 :With PTC heater

*4 :With Drive selection switch

*5 :Without driver-side power seat

*6 :With driver-side power seat

*7 :With heated steering wheel

*8 :Terminal voltage differs depending on the operation condition of the dash-electrical supply unit.

*9 :L.H.D.

*10 :R.H.D.
