AIR MIX ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (E)]

Home  id0740a28001y4

Warning

•  Service the area around the heater core pipe when the engine is cold. If the heater core pipe is touched when the engine is hot, it may cause severe burns.

L.H.D.

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

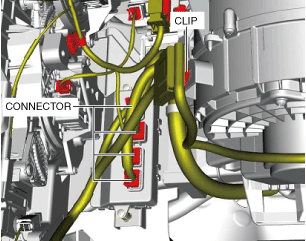

4.  Detach the clip.

am3zzw00021372

5.  Disconnect the connectors.

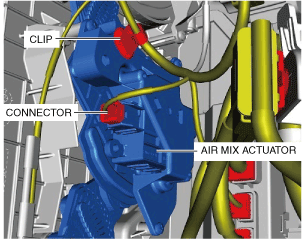

6.  Disconnect the connector.

am3zzw00028273

7.  Detach the clip.

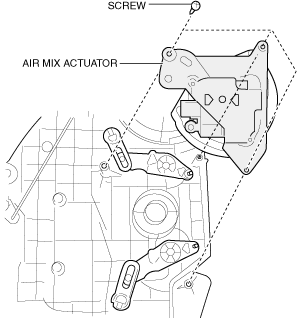

8.  Remove the screws.

am3zzw00028274

9.  Remove the air mix actuator.

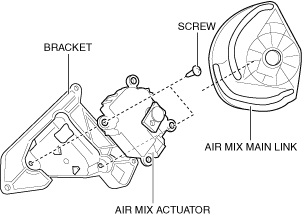

10.  Remove the air mix main link.

am3zzw00028275

11.  Remove the screws.

12.  Remove the bracket.

R.H.D.

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

4.  Detach the clip.

am3zzw00028276

5.  Disconnect the connectors.

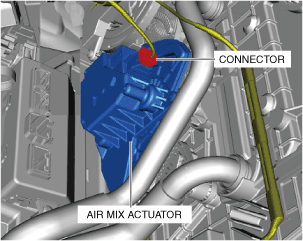

6.  Disconnect the connector.

am3zzw00028277

7.  Remove the screws.

am3zzw00028278

8.  Remove the air mix actuator.

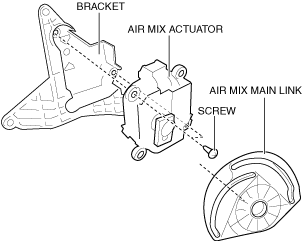

9.  Remove the air mix main link.

am3zzw00028279

10.  Remove the screws.

11.  Remove the bracket.
