SHROUD UPPER MEMBER REMOVAL/INSTALLATION

SHROUD UPPER MEMBER REMOVAL/INSTALLATION


 id091000889800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Upper face (See UPPER FACE REMOVAL/INSTALLATION.)
(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)
(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Horn (See HORN REMOVAL/INSTALLATION.)

3.  Remove the hood release cable from clips. (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

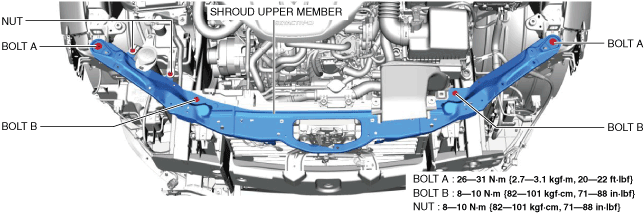

4.  Remove the nuts.

ac30zw00001119

5.  Remove bolts A and B.

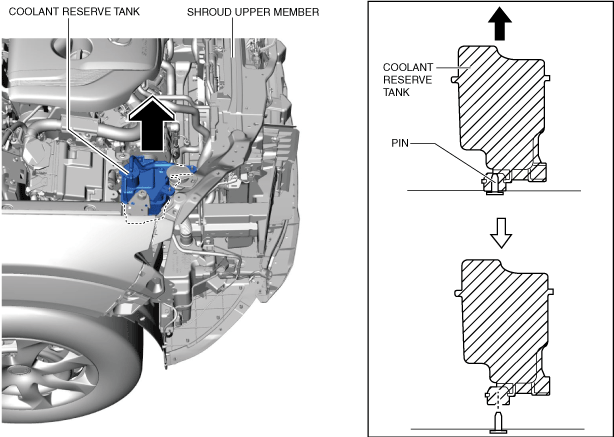

6.  Move the coolant reserve tank in the direction of the arrow shown in the figure and detach the pin.

ac30zw00001120

7.  Detach the tab from the shroud upper member.

ac30zw00001121

8.  Pull out the coolant reserve tank from the stud bolts of the shroud upper member.

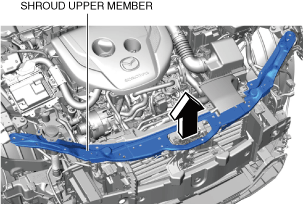

9.  Remove the shroud upper member in the direction of the arrow.

ac30zw00001122

10.  Install in the reverse order of removal.

11.  Adjust the headlight aiming. (See HEADLIGHT AIMING [(E)].)

12.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

13.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

14.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
