PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION

id092200042000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the connectors.

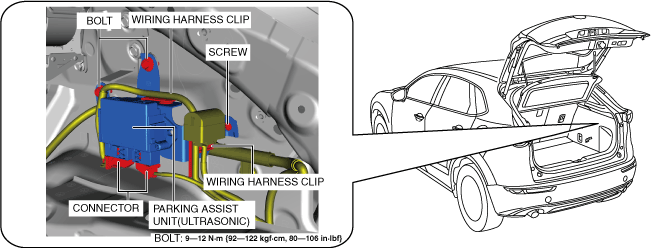

ac30zw00001902

5.  Remove the wiring harness clips.

6.  Remove the screw and bolts.

7.  Remove the parking assist unit (ultrasonic) and the bracket as a single unit.

8.  Remove the screws.

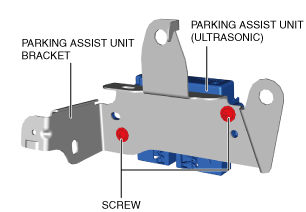

ac30zw00001903

9.  Remove the parking assist unit (ultrasonic) from the bracket.

10.  Install in the reverse order of removal.
