ELECTRIC THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0112hf802300

Replacement Part

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

Note

•  The electric thermostat heater is built into theelectric thermostat. When replacing the electric thermostat heater, replace the electric thermostat.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

3.  Drain the transaxle oil (MTX) or ATF (ATX). (2WD) (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R]) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (E)])

4.  Drain the transfer oil. (AWD) (See TRANSFER OIL REPLACEMENT [ET6AX-EL (E)])

5.  Disconnect the front drive shaft (RH) from the transaxle side and set is aside so that it does not interfere with the servicing. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)])

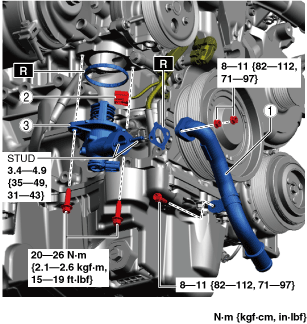

6.  Remove using the procedure shown in the figure.

7.  Add transaxle oil (MTX) or ATF (ATX). (2WD) (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R]) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (E)])

8.  Add transfer oil. (AWD) (See TRANSFER OIL REPLACEMENT [ET6AX-EL (E)])

9.  Add engine coolant. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

am3zzw00036859

1	Water pipe
2	Electric thermostat connector
3	Electric thermostat
