EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0116hf099000
Replacement part
|
Gasket
Quantity: 2
Location of use: EGR cooler
|
Nut
Quantity: 4
Location of use: EGR cooler
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3. Remove the following parts. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)
5. Remove the following parts as a single unit. (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6. Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

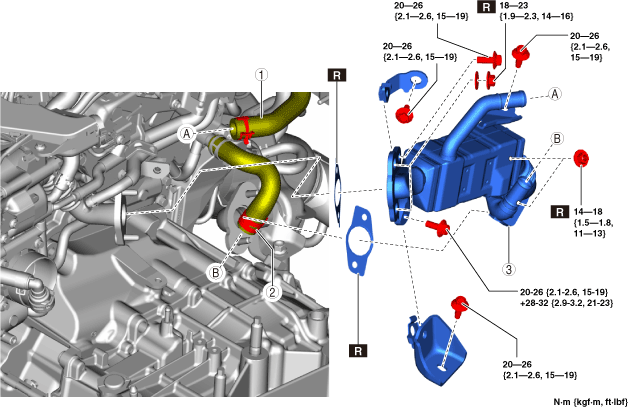

7. Remove using the procedure shown in the figure.
8. Install in the reverse order of removal.
am3zzw00035719
|
|
1
|
Water hose No.1
(See EGR Cooler Installation Note.)
|
|
2
|
Water hose No.2
(See EGR Cooler Installation Note.)
|
|
3
|
EGR cooler
|
EGR Cooler Installation Note

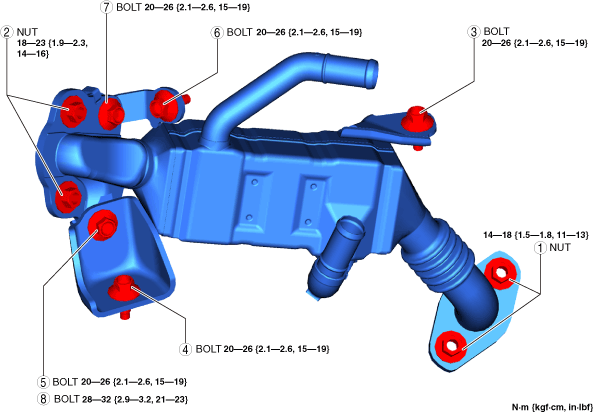

1. Temporarily tighten the nuts and bolts shown in the figure.
am3zzw00036189
|
2. Tighten the nuts and bolts in the order shown in the figure.
Water Hose No.2 Installation Note
1. Align the marking on the hose with the projection of the EGR cooler as shown in the figure and install.
am3zzw00035721
|
Water Hose No.1 Installation Note
1. Align the hose with the marking on the EGR cooler as shown in the figure and install.
am3zzw00035722
|
