VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0411008036y5

Replacement Part

Oil and Chemical Type

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

2.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

4.  Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

5.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

•  Air hose

•  Air inlet pipe

6.  Remove the vacuum pipe installation bolts. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

7.  Disconnect the engine coolant temperature (ECT) sensor connector.

am3zzw00029774

8.  Remove the vacuum hose. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

am3zzw00029775

9.  Perform the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 1.8].)

10.  Disconnect the fuel main hose No.2 and fuel return hose No.3 from the lower case. (See LOWER CASE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

11.  Remove the clip.

am3zzw00029777

12.  Remove the fuel return pipe. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

13.  Remove fuel feed pipe. (See SUPPLY PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

14.  Remove the lower case installation bolts. (See LOWER CASE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

am3zzw00029778

15.  Remove in the order shown in the table.

16.  Install in the reverse order of removal.

17.  Perform the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-D 1.8].)

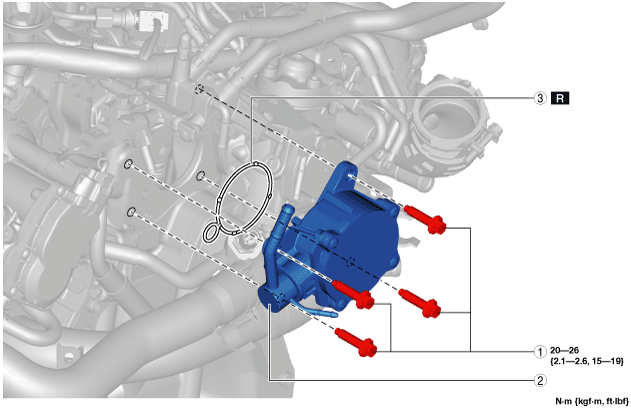

adejjw00010170

1	Bolt
2	Vacuum pump (See Vacuum Pump Removal Note.) (See Vacuum Pump and O-ring Installation Note.)
3	O-ring (See Vacuum Pump and O-ring Installation Note.)

Vacuum Pump Removal Note

1.  When removing the vacuum pump, place a clean cloth under the installation surface of the vacuum pump so that engine oil does not get on other parts.

2.  Remove the vacuum pump.

Vacuum Pump and O-ring Installation Note

1.  Rotate the vacuum pump by hand to drain the remainder of the engine oil in the vacuum pump.

2.  Degrease the O-ring installation groove and installation surface.

3.  Install the O-ring to the vacuum pump.

Caution

•  When cleaning away the remaining silicone sealant on the cylinder head, insert a clean cloth into the oil passage and be careful not to allow silicone sealant to penetrate the oil passage. Otherwise, silicone sealant may penetrate the oil passage.

•  Use a clean cloth when blocking the oil passage. If a shop paper towel is used, pieces of the oil soaked towel may break off and enter the oil passage.

4.  Insert a cloth into the oil passage shown in the figure.

ac3wzw00002521

5.  Scrape the cylinder head from the inside to the outside using a scraper and clean away the remaining silicone sealant on the cylinder head so that it does not get in the cylinder head.

ac3wzw00002522

•  If silicone sealant gets in the cylinder head, blow it out using compressed air.

6.  Clean the cylinder head.

Caution

•  Be careful not to apply a large quantity of silicone sealant. Otherwise, the silicone sealant may overlap the O-ring of the vacuum pump and block the oil passage of the cylinder head.

•  Install the vacuum pump before silicone sealant dries.

7.  Apply silicone sealant (TB1217D or equivalent) to the positions shown in the figure.

adejjw00010171

8.  Install the vacuum pump.
