REAR VENT DUCT REMOVAL/INSTALLATION

Home  id071100830100

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

3.  Remove rear vent duct No.2.

am3zzw00032055

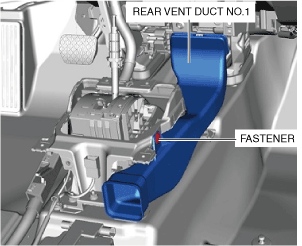

4.  Remove the fastener.

am3zzw00032056

5.  Remove rear vent duct No.1.

6.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

3.  Remove rear vent duct No.2.

am3zzw00028231

4.  Remove the fastener.

am3zzw00028232

5.  Remove rear vent duct No.1.

6.  Install in the reverse order of removal.
