DASHBOARD DISASSEMBLY/ASSEMBLY [(E)]

id0917008004x2

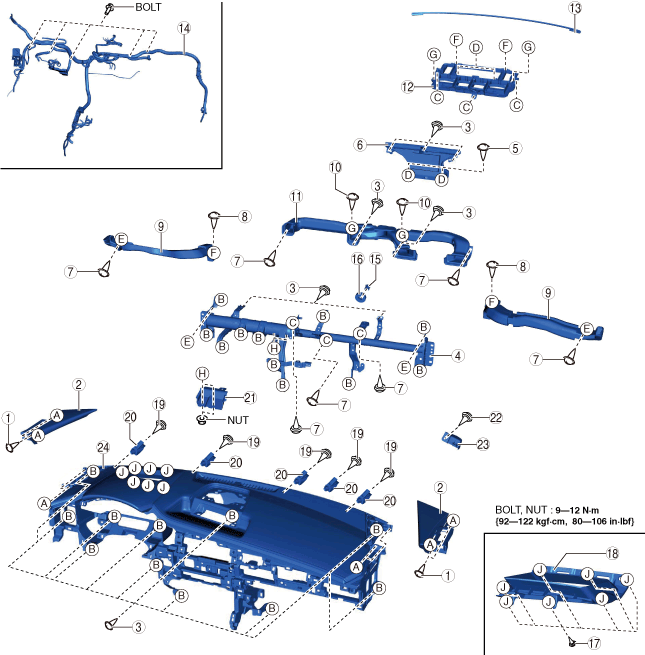

1.  Disassemble in the order indicated in the table.

ac30zw00005332

1	Screw
2	Upper garnish
3	Screw
4	Dashboard member
5	Screw
6	Duct No.2
7	Screw
8	Screw
9	Demister duct
10	Screw
11	Center duct
12	Duct No.1
13	Seal tape
14	Wiring harness (See Dashboard Wiring Harness Removal Note.)
15	Member junction
16	Cushion rubber
17	Screw (with active driving display)
18	Hole cover (with active driving display)
19	Screw
20	Guide pin
21	Dashboard bracket
22	Screw (with glove compartment light bulb)
23	Lamp case (with glove compartment light bulb)
24	Dashboard

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the dashboard, remove the following parts and install them to the new dashboard.

1.  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Glove compartment light bulb (with glove compartment light bulb) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION [(E)].)

3.  Front center speaker (with Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

4.  Global positioning system (GPS) antenna (with global positioning system (GPS)) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

5.  Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

6.  Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].)

7.  Driver monitoring camera unit (with driver monitoring system) (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)

Dashboard Wiring Harness Removal Note

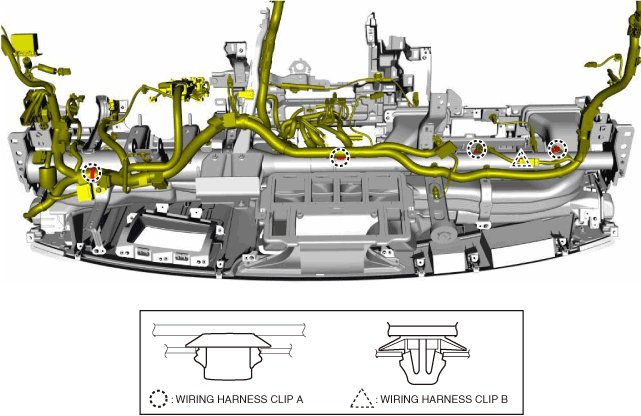

1.  The shape of the wiring harness clips at the positions shown in the figure cannot be visually verified. Refer to wiring harness clips A and B shown in the figure when removing the dashboard wiring harness.

ac30zw00000218
